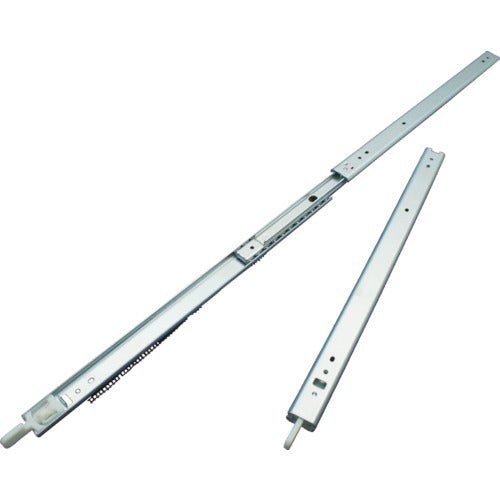

Closed Lock Slide Rail C2739-35CL Acculide

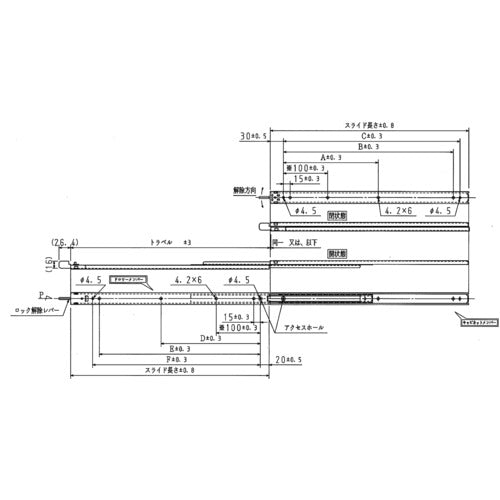

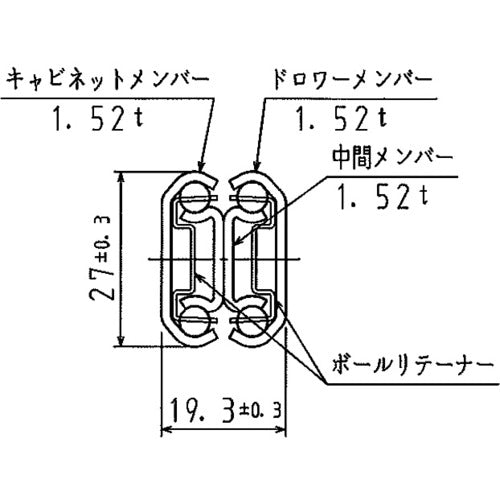

With the lock mechanism for the fully closed state. Can be unlocked by the lever operation.For pulling out a tool box, housing equipment, factory equipment, machinery etc.W x H x L x moving distance (mm):19.3 x 27 x 350 x 355Rated Load (N) pair/vertical:304For light load3 Member Full Travel TypeDrawer member can not be removedMounting screw: Bind(M3, M4), truss small screw(M3)Stop typeSteel (SPCC)Surface Treatment: Trivalent Chrome Plated FinishingLength of the lock lever(26mm)is not included in total length in the dimension display of the slide rail.
