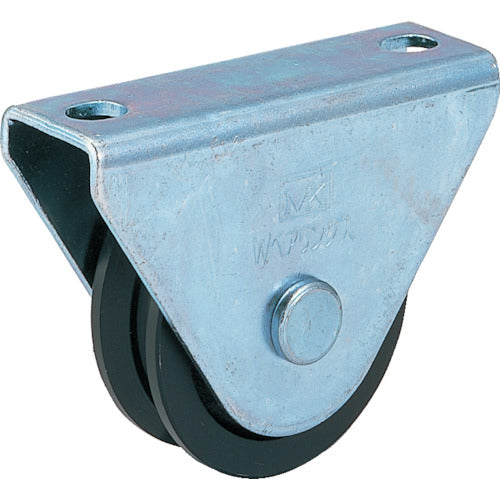

Heavy-duty Caster with Frames C-1000 C-1000-600 MK

Since the wheel uses ductile cast iron (FCD-450), the strength is greatly increased compared to ordinary cast iron.For angle, for flat bar.(daN):220Allowable Weight (kgf):225Wheel Diameter (mm):60Wheel Width (mm):26Mounting Height H (mm):67.0Mounting Plate A x B (mm):100 x 38.0Mounting Pitch X (mm):70Mounting Hole Diameter P (mm):11Frame: SteelFrame Surface Treatment: Trivalent Chrome Plated FinishingWheel: Ductile Caste Iron (FCD-450)Allowable weight is a reference value in the vertical direction.
