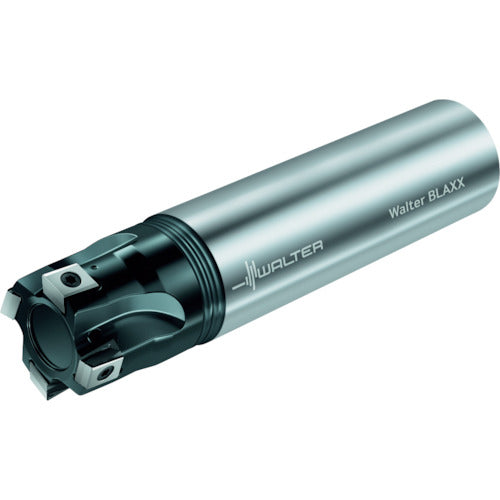

Shoulder Mill 6197401 WALTER

【Features】
A cutter with an approach angle of 90° and a 4-corner insert.
Highest process reliability due to stable design
The thickest vertical carbide tip in the force direction
Special surface treatment of the tool body and strengthened core thickness
Increased number of teeth in diameter

【Use】
For shoulder milling and face milling of iron/cast iron workpieces, stainless steel, difficult-to-cut materials, and aluminum.
For the automobile industry, aerospace industry, and general parts processing.

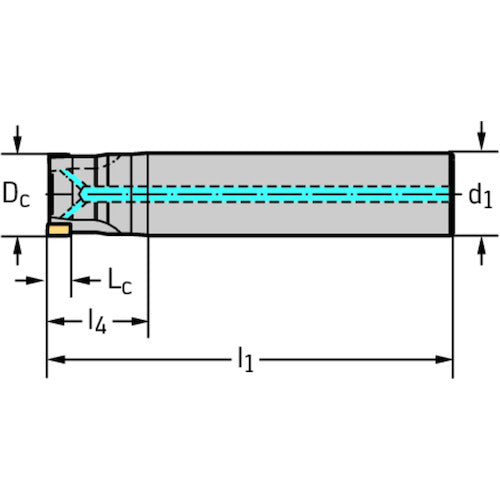

【Specification】
Number of blades (pieces): 3
Blade diameter (mm): 25
Total length (mm): 200
Shank diameter (mm): 25
Compatible tip: LNHX0904PDR-L55T**/LN*U0904**
Number of teeth: 3
Below the neck (mm): 38

【Specification2】
Cylindrical shank
Metric

【Material/Finish】
Steel

【Set contents/accessories】
－

【caution】
－
