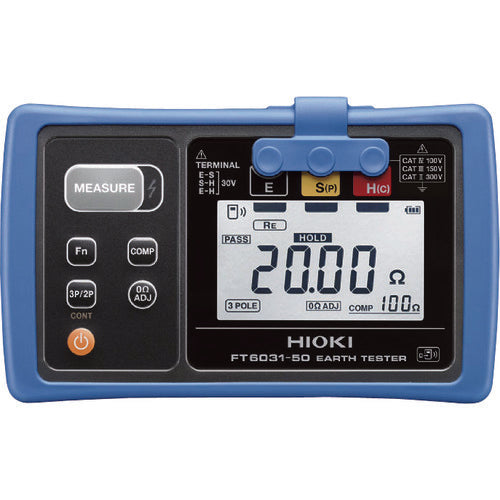

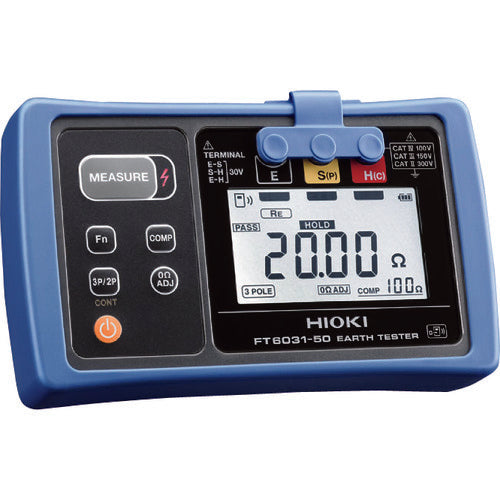

Digital Earth Tester FT6031-50 HIOKI

【Features】
This is a digital earth resistance meter that is dustproof, waterproof, and robust, making it suitable for use in the field.
Compatible with Z3210 (optional). You can transfer measured values ​​to your smartphone or tablet and quickly create reports using on-site photos and drawings.

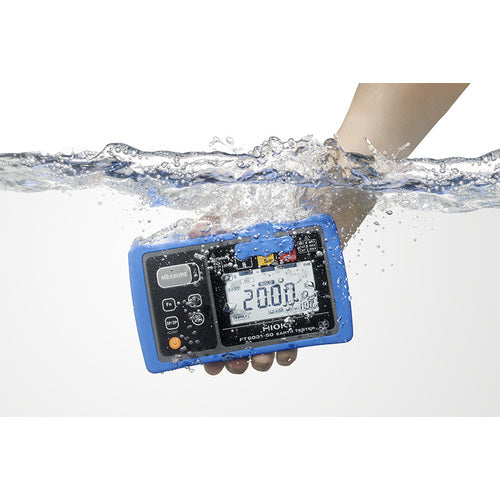

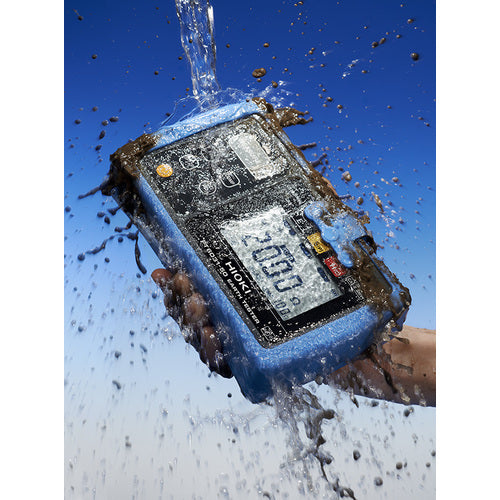

It has an IP67 protection rating to prevent dust from entering and water from entering.
One unit covers ground resistance measurements from class A to class D.
Can measure a wide range of 0 to 2000Ω.

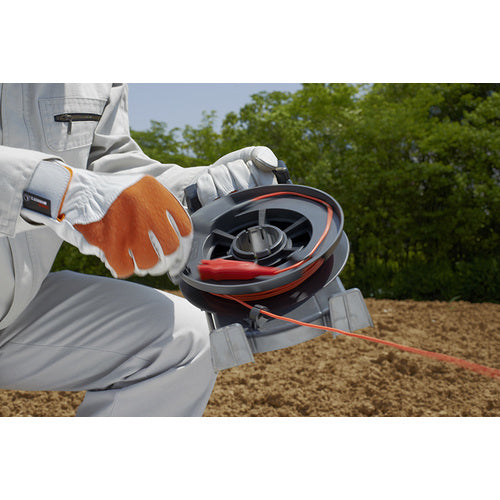

Comes with an improved grounding rod and cord winder that can significantly reduce work time.

【Use】

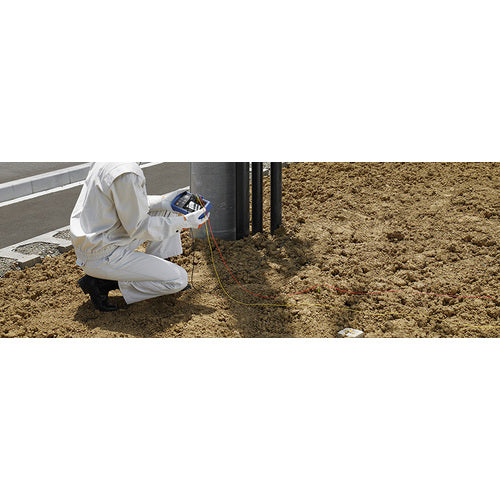

For measuring ground resistance during grounding work.
For measuring ground resistance in electrical work.
For indoor electrical work, construction and maintenance of electrical equipment.

【Specification】
Earth resistance (Ω): 20/200/2000
Earth voltage (V): 30
Width (mm): 185
Depth (mm): 44
Height (mm): 111
Power supply (V): AA Alkaline battery (LR06) x 4

【Specification2】
Compliant standards: EN61010 (safety), EN61326 (EMC), EN61557 (ground resistance)
Dustproof and waterproof (EN 60529): IP 67
Measurement method: 3-electrode method (A-D class), 2-electrode method (D class)
Measurement frequency switching: 128Hz Functions: Automatic check (cable breakage, earth voltage noise check), zero adjustment, earth voltage measurement, live wire warning, comparator, continuous measurement mode, wireless communication (only when Z3210 is installed)

【Material/Finish】
Housing: PPE

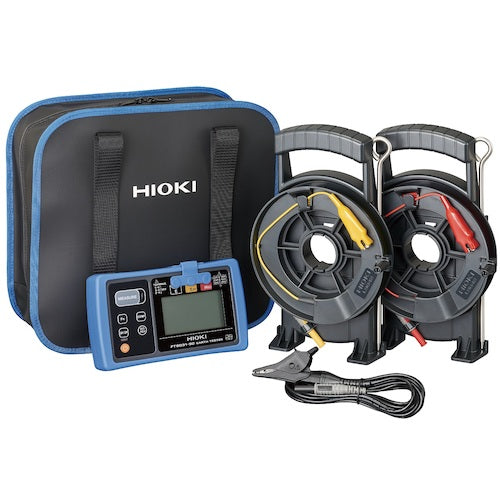

【Set contents/accessories】
Measurement cord yellow (10m, with winder) (L9842-11) x 1, measurement cord red (20m, with winder) (L9842-22) x 1, measurement cord black (4m) (L9841) x 1

【caution】
Never attempt to measure a measurement point that has a higher value than the category displayed on the measuring device. This may lead to serious accidents such as electric shock.
