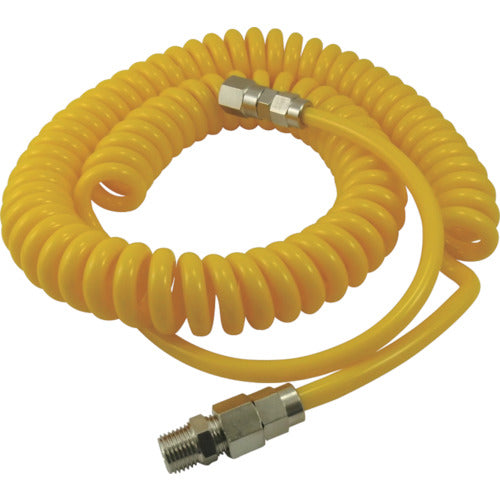

Line Spiral WL806Y CHIYODA

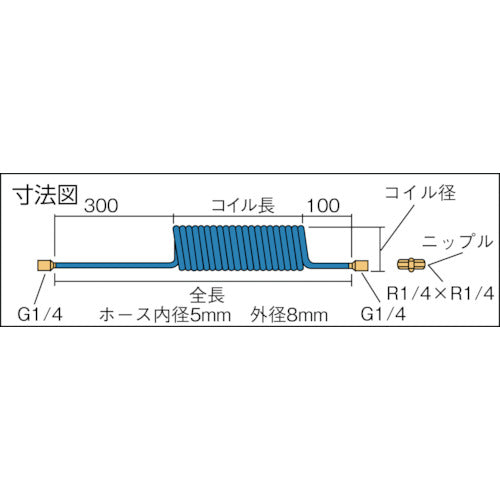

The coil diameter is 30% smaller than the conventional TPS, and difficult to entangle even during multiple usage.Easy to pull out horizontally.Excellent in flexibility.Metal fittings are the standard equipment on both ends.Coil Diameter (mm):30Color:YellowOperating Range (m):3.65Total Length (mm):1040Coil Length (mm):640Working Fluid: AirFluid Temperature: -5 to 60CWorking Pressure: 0.6MPaConnection Partner: Hose FittingHose Inner Diameter x Outer Diameter: 5 x 8mmMain Body: PolyurethaneCoupling: Brass
