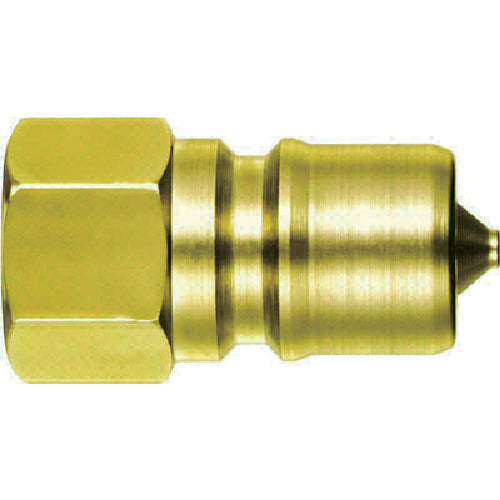

SP CUPLA type A 19104 NITTO
SP CUPLA type A 19104 NITTO
SP CUPLA type A 19104 NITTO
  • Load image into Gallery viewer, SP CUPLA type A 19104 NITTO
  • Load image into Gallery viewer, SP CUPLA type A 19104 NITTO
  • Load image into Gallery viewer, SP CUPLA type A 19104 NITTO

SP CUPLA type A 19104 NITTO

【order ID】3280683
【basic item number】19104
【brand name】NITTO
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】NITTO KOHKI CO.,LTD.
【Country of origin】Japan
【Weight】0.92KG
【Features】
The smooth shape of the plug tip makes connection operations with the socket smoother and more comfortable.
The valve's automatic return to center function improves sealing performance after separation.

【Use】
Water/chemical piping connections.
Piping connections for air, gas, and oil.

【Specification】
Proof pressure (MPa): 3.0
Usable fluid: water, chemicals, air, gas, hydraulic oil
Operating temperature range (℃): -20 to 80
Maximum operating pressure (MPa): 2.0
Mating side mounting size: R1 1/2
Total length (mm): 75
Nitto Kohki SP-A coupler series

【Specification2】

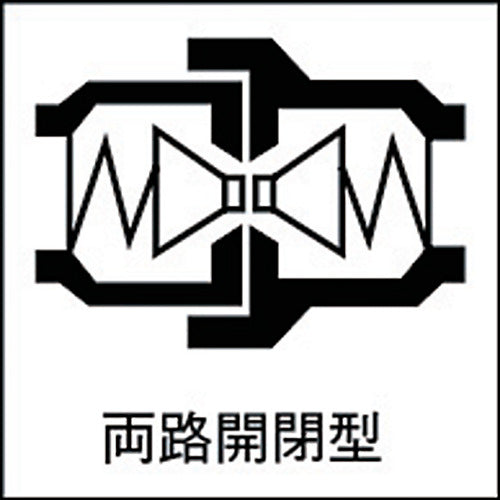

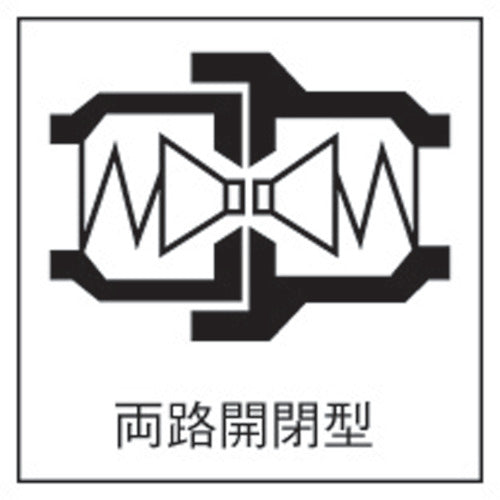

Double-way open/close type

【Material/Finish】
Body: Brass
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
¥17,625
¥17,625
Sold out

Delivery：approximate 2-3 business days to ship from Japan
