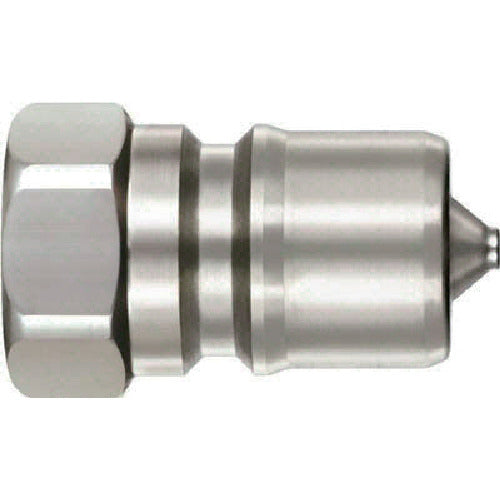

SP CUPLA type A 07901 NITTO

【Features】
The smooth shape of the plug tip makes connection operations with the socket smoother and more comfortable.
The valve's automatic return to center function improves sealing performance after separation.
Standardized with SUS304, applicable to a wide range of fluids.

【Use】
Water/chemical piping connections.
Piping connections for air, gas, and oil.

【Specification】
Proof pressure (MPa): 10.0
Usable fluid: water, chemicals, air, gas, hydraulic oil
Operating temperature range (℃): -20 to 80
Maximum operating pressure (MPa): 7.5
Mating side mounting size: R3 /8
Total length (mm): 40

【Specification2】

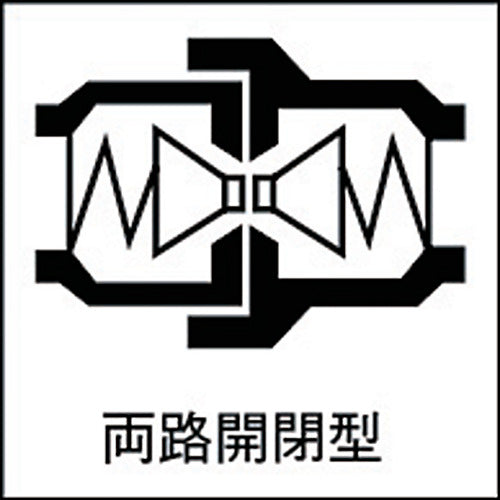

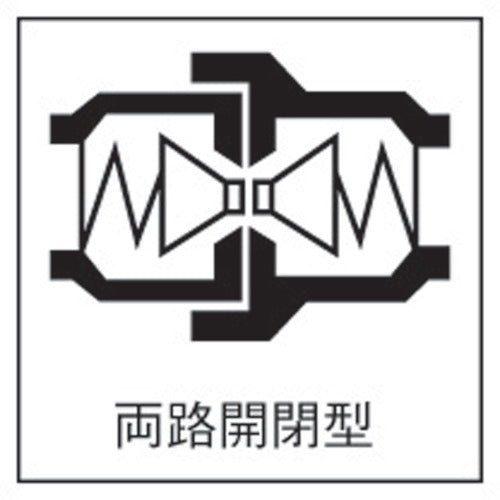

Double-way open/close type
Display symbol: NBR (SG)
Applicable coupler: Nitto Kohki SP-A coupler series

【Material/Finish】
Body: Stainless steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
