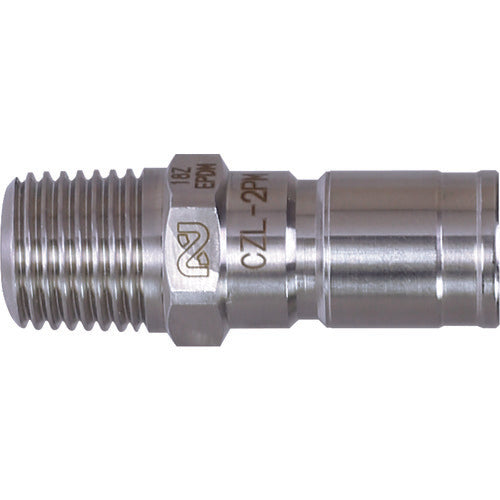

Quick Connect Coupling 70617 NITTO

【Features】
Compact size saves space
Large flow rate
One-touch connection by just plugging in
Drip-reducing valve structure reduces the amount of air mixed in and the amount of liquid dripped during connection/disconnection

【Use】
For cooling water piping

【Specification】
Proof pressure (MPa): 1.5
Usable fluid: water, air
Maximum working pressure (MPa): 1.0
Mating side mounting size: Rc1/4
Connection thread: Rc1/4
Outer diameter (mm): 15.5
Dimensions (mm) L: 39.5 Thread size: 1/4

【Specification2】
Drip reduction valve structure
Maximum operating temperature: -10℃~100℃
Maximum operating pressure: 1.0MPa

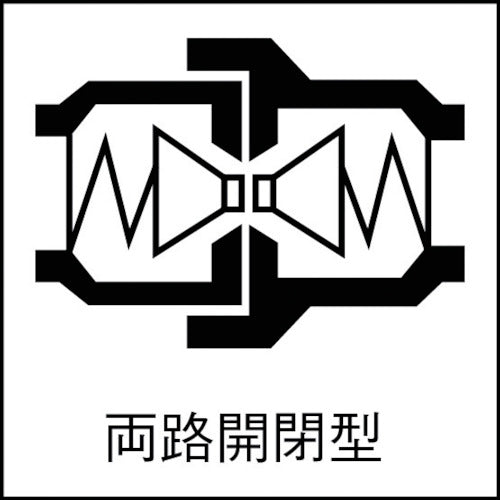

Double-way open/close type

【Material/Finish】
Body: Stainless steel
Seal rubber: Ethylene propylene rubber (EPDM)

【Set contents/accessories】
－

【caution】
－
