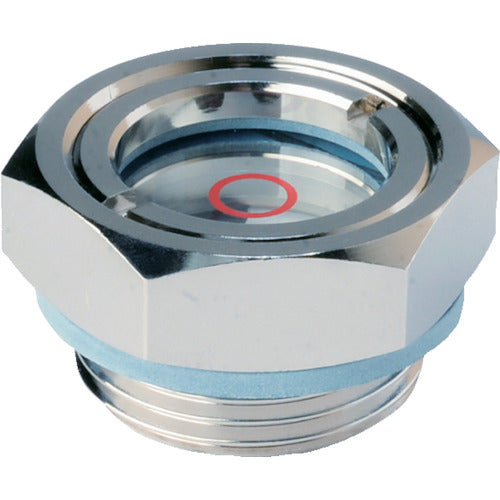

Oil Gauge MG type 10114000 IEHARA LITE INDUSTRY
Oil Gauge MG type 10114000 IEHARA LITE INDUSTRY
  • Load image into Gallery viewer, Oil Gauge MG type 10114000 IEHARA LITE INDUSTRY
  • Load image into Gallery viewer, Oil Gauge MG type 10114000 IEHARA LITE INDUSTRY

Oil Gauge MG type 10114000 IEHARA LITE INDUSTRY

【order ID】5512541
【basic item number】10114000
【brand name】IEHARA LITE INDUSTRY
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】IEHARA LITE INDUSTRY,LTD
【Country of origin】Japan
【Weight】71.4G
【Features】
Since it is made of metal, there is no need to worry about damage.
The transparent plate on the liquid surface is made of heat-resistant glass and is heat-resistant up to 160℃.

【Use】
－

【Specification】
Thickness (mm): 19.5
Mounting screw diameter: G1
Pressure resistance (MPa): 1.5 (40℃)
Heatproof temperature (℃): 160
Width across flats dimension (mm): 38
Width (mm): 44

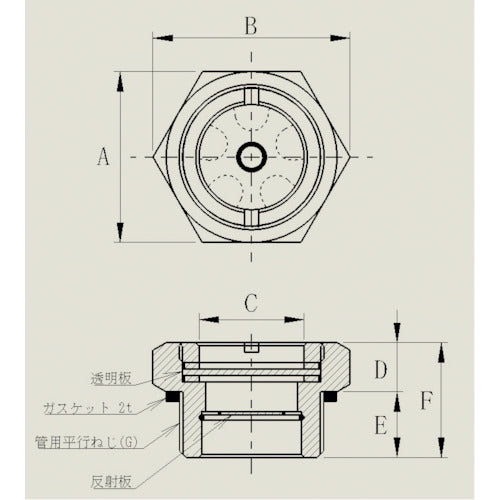

A(mm): 38
B(mm): 44
C(mm): 26
D(mm): 9.5
E(mm): 10
F(mm): 19.5

【Specification2】
Mounting thread diameter: Parallel pipe thread G1

【Material/Finish】
Body: Brass, nickel plating
Transparent plate: Heat-resistant glass

【Set contents/accessories】
－

【caution】
－
¥2,910
¥2,910
Sold out

Delivery：approximate 2-3 business days to ship from Japan
