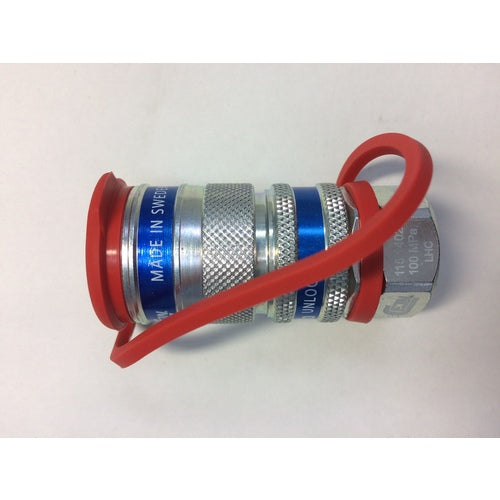

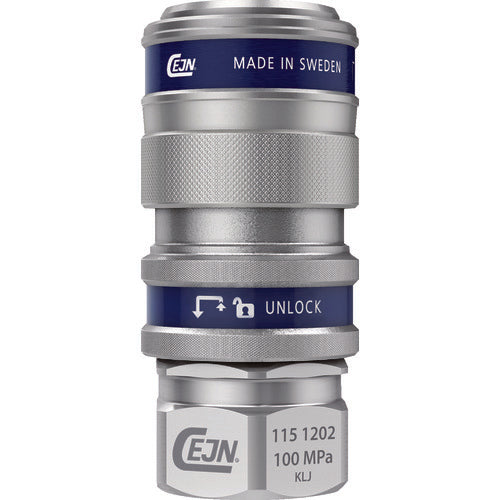

Coupling 115 Series 10-115-1202 CEJN

【Features】
One-touch connection.
Compact design.
Non-drip structure.
Equipped with a safety lock mechanism.

【Use】
For connecting hydraulic torque wrenches and bolt tensioners.

【Specification】
Proof pressure (MPa): 100
Mating side mounting size: G1/4 male thread
Fluid used: Hydraulic oil
Maximum working pressure (MPa): 100
Working pressure: 100
Minimum bursting pressure (Mpa): 260

【Specification2】
Operating temperature range: -30 to 100℃
With plastic dust cap
With safety lock mechanism

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
