Coupling 310 eSafe Series 10-310-2082 CEJN

【Features】

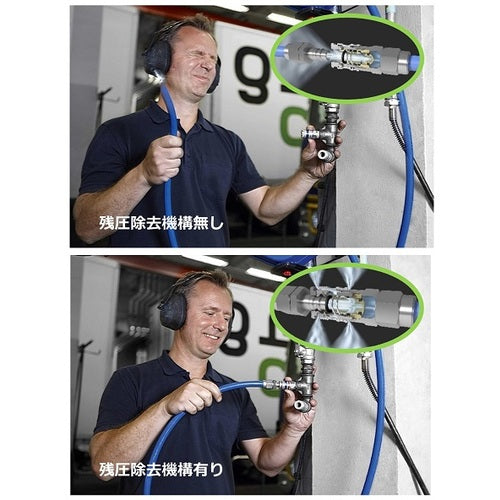

Residual pressure removal function (purge function) prevents accidents caused by hose reaction during separation and allows safe removal.

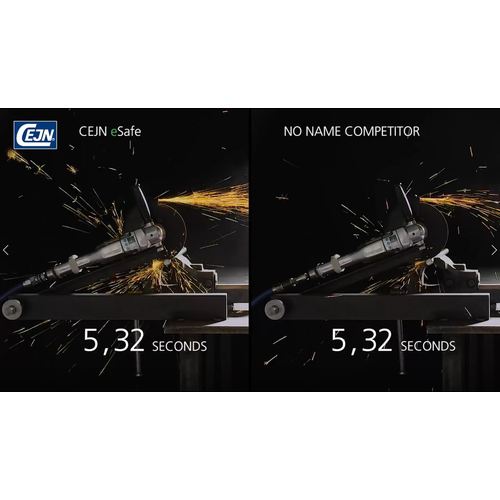

High flow rate, low pressure loss design that contributes to energy saving and work efficiency

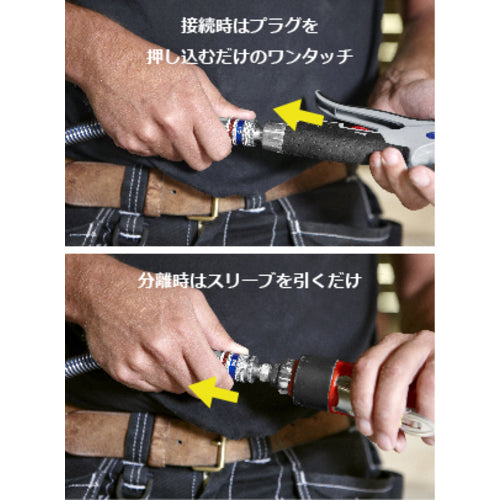

Easy operation that automatically removes residual pressure by just one touch when connecting and pulling the sleeve when disconnecting

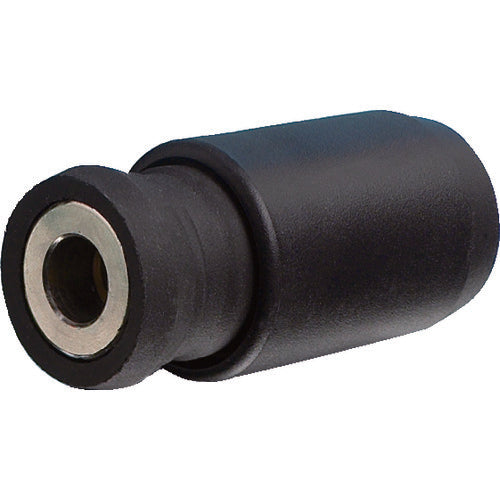

Protects the main body from impact Comes with a cover to prevent damage to surrounding equipment.

【Use】
Pneumatic tools, pneumatic equipment, factory air piping

【Specification】
Mating hose size (mm): 8.0 x 12.0
Fluid: Air
Maximum working pressure (MPa): 1.6
Nominal diameter: 5.3mm
Minimum bursting pressure: 14MPa

【Specification2】
Operating temperature: -20 to 100℃
With cover to protect from damage
Air flow rate: 950L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to ISO 6150 B, A-A 59439, and 5.3mm standards including Series 310.
