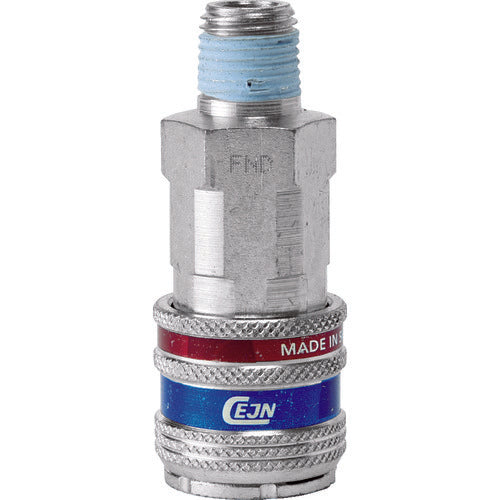

Coupling 315 eSafe Series 10-315-2152 CEJN

【Features】
Safe residual pressure removal function prevents accidents caused by hose recoil during separation.
Large flow rate and low pressure loss design that contributes to energy savings and work efficiency.
Easy operation that allows residual pressure to be automatically removed by just one touch when connecting and by pulling the sleeve when disconnecting.
Energy consumption can be reduced by up to 30%.

【Use】
－

【Specification】
Fluid used: Air
Maximum working pressure (MPa): 1.6
Mating side mounting size: Rc1/4
Minimum bursting pressure (Mpa): 14.0

【Specification2】
Operating temperature range: -20 to 100℃
Nominal diameter (mm): 7.5
Air flow rate: 1950L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Compatible with domestic general products.
