Coupling 320 eSafe Series 10-320-2082 CEJN

【Features】

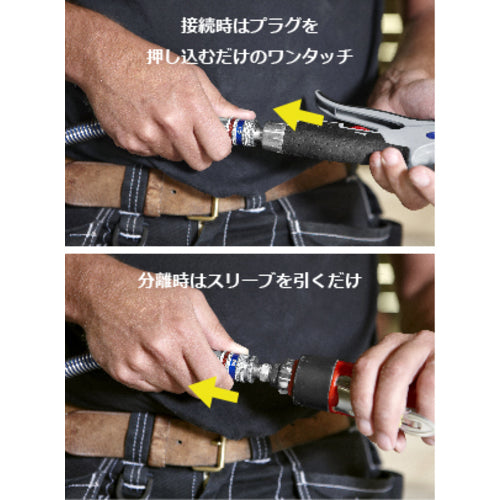

The safe residual pressure removal function prevents accidents caused by hose recoil during separation with the simple operation of pulling the sleeve.
Large flow rate and low pressure loss design that contributes to energy savings and work efficiency.

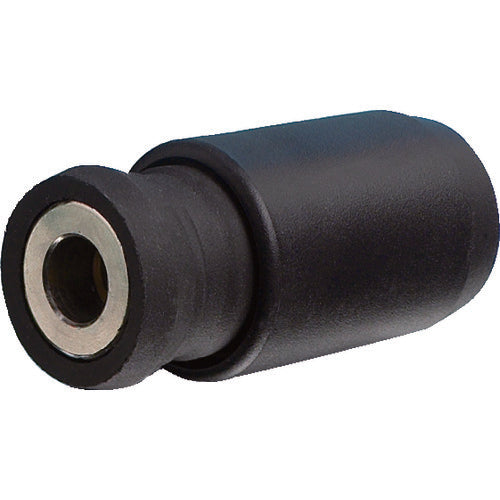

The cover does not damage the surfaces of surrounding equipment and protects the coupling from impact.

【Use】
－

【Specification】
Mating hose size (mm): 8.0×12.0
Fluid: Air
Maximum working pressure (MPa): 1.6
Minimum bursting pressure (Mpa): 14.0

【Specification2】
Operating temperature range: -20 to 100℃
With cover to protect from damage
Nominal diameter (mm): 7.6
Air flow rate: 2250L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
Residual pressure With removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to European standard 7.4mm including series 320.
