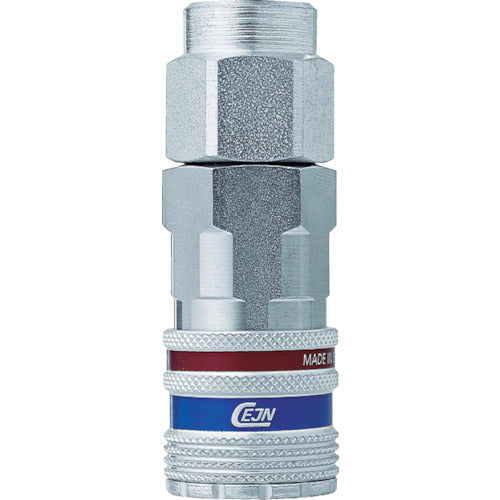

Coupling 410 eSafe Series 10-410-2407 CEJN

【Features】
Residual pressure removal function (purge function) prevents accidents caused by hose reaction during separation and allows safe removal.
Large flow rate and low pressure loss design that contributes to energy savings and work efficiency.
Large diameter type.
Easy operation that allows residual pressure to be automatically removed by just one touch when connecting and by pulling the sleeve when disconnecting.

【Use】

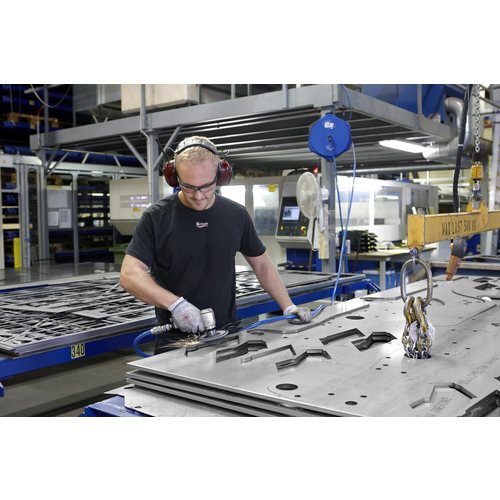

Large air tools, large diameter hoses, and air piping on the primary side of the factory

【Specification】
Fluid used: Air
Maximum working pressure (MPa): 1.6
Mating side mounting size: NPT3/4 male thread
Minimum bursting pressure (Mpa): 14.0

【Specification2】
Operating temperature range -20 to 100℃
Nominal diameter (mm): 10.4
Air flow rate: 4000L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to European standard 10.4mm including series 410.
