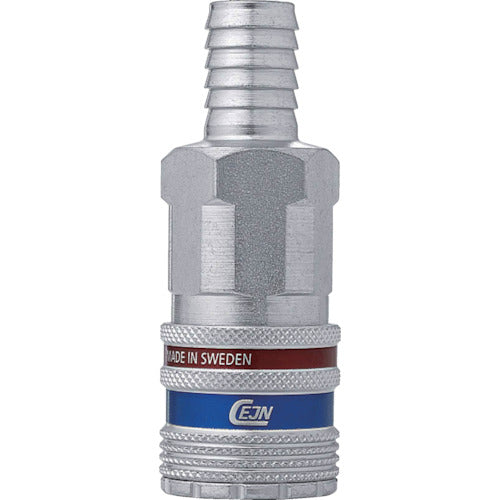

Coupling 430 eSafe Series 10-430-2007 CEJN

【Features】
Residual pressure removal function (purge function) prevents accidents caused by hose reaction during separation and allows safe removal.
Large flow rate and low pressure loss design that contributes to energy savings and work efficiency.
Easy operation that allows residual pressure to be automatically removed by just one touch when connecting and by pulling the sleeve when disconnecting.

【Use】

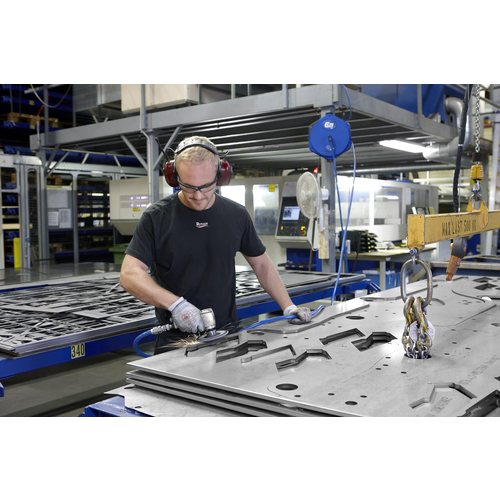

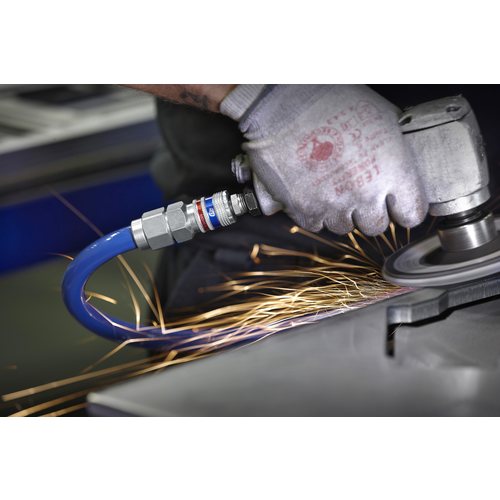

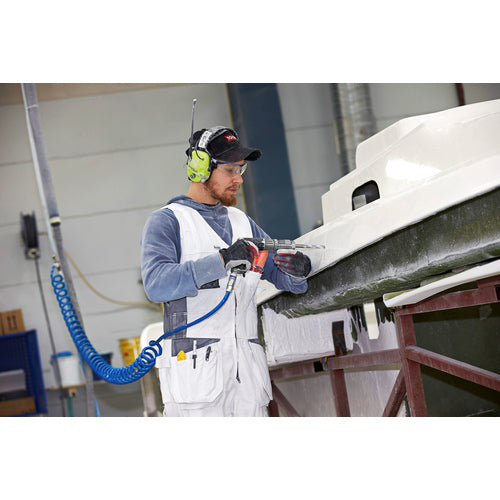

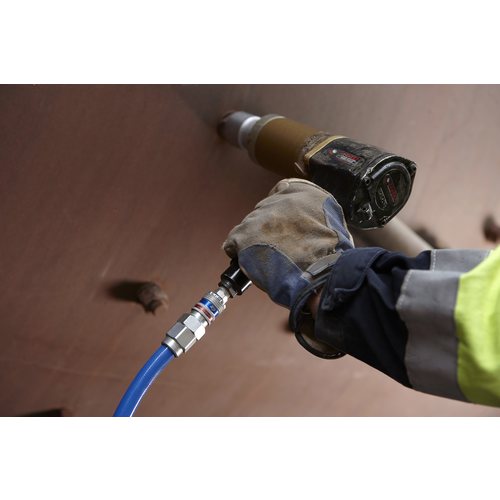

Pneumatic tools, pneumatic equipment, factory air piping

【Specification】
Mating hose size (inch): 3/4
Fluid used: Air
Maximum working pressure (MPa): 1.6
Nominal diameter: 8.2mm
Minimum bursting pressure (MPa): 14.0

【Specification2】
Operating temperature: -20 to 100℃
Air flow rate: 2500L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to ISO6150B, A-A59439, and 8.2mm standards including series 430.
