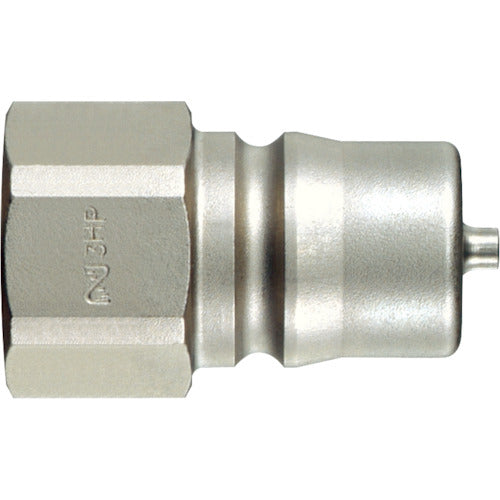

HSP CUPLA 00936 NITTO

【order ID】1137867
【basic item number】00936
【brand name】NITTO
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】NITTO KOHKI CO.,LTD.
【Country of origin】Japan
【Weight】3.3KG
【Features】
Both the socket and plug are equipped with automatic open/close valves to prevent fluid from flowing out when separated.
Structured to keep pressure loss low.

【Use】
－

【Specification】
Proof pressure (MPa): 20.6
Mating side mounting size: R2
Fluid used: Hydraulic oil
Maximum working pressure (MPa): 14.0
Operating temperature range (℃): -20 to 80
Applicable coupler: Nitto Kohki HSP coupler series

【Specification2】

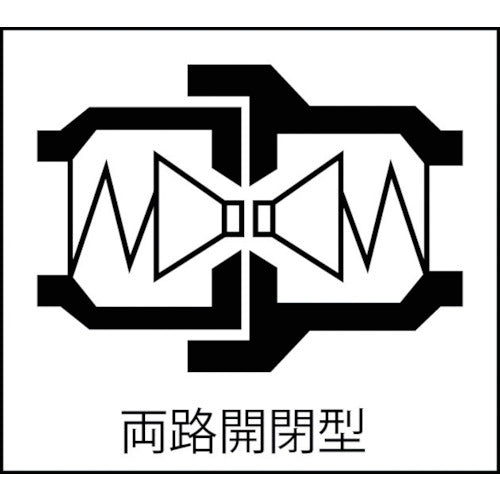

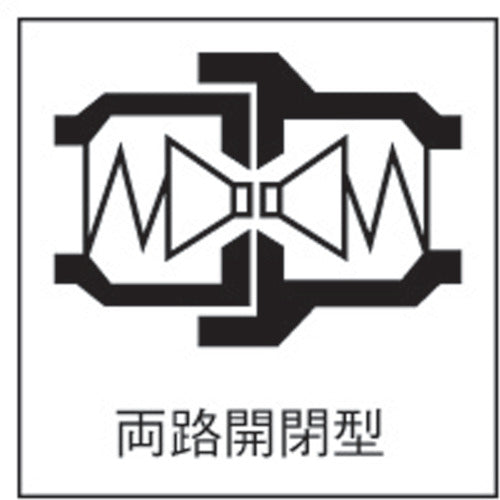

Double-way open/close type

【Material/Finish】
Body: Special steel (nickel plating)
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
¥39,625
¥39,625
Sold out
