Low Friction Ultra-Flexible Polyurethane Tubing 18L-10-N-20 Junkosha

【Features】

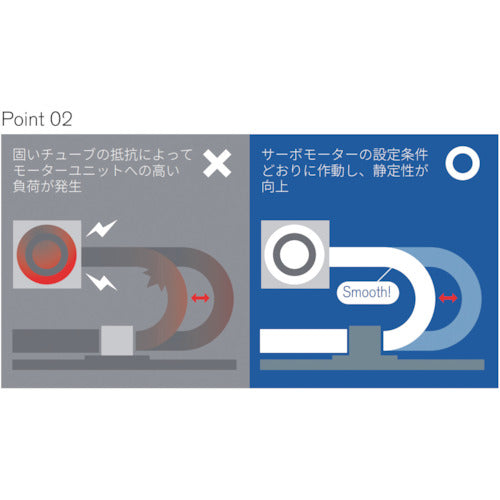

We have further improved the flexibility of conventional polyurethane tubes.
It is more flexible than the urethane tube US series and can be used at the same maximum working pressure as the UF series.
The tube surface is textured to eliminate tackiness and give it slipperiness.
Flattening by fusion processing and coil shape processing are also possible.

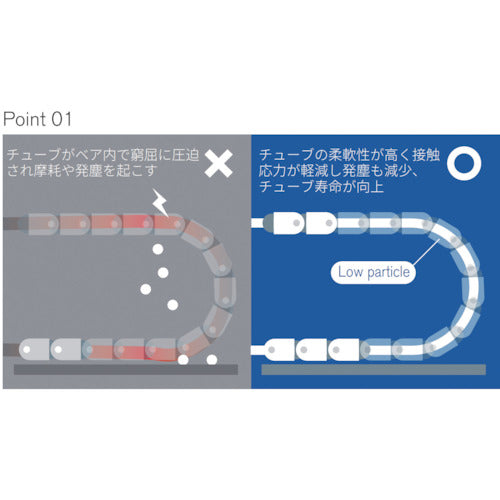

Easy to follow bending, making it resistant to buckling.

【Use】
For mounters
For handlers
For bonders
For wafer transfer equipment
For articulated robots
For SCARA robots
For parallel robots

【Specification】
Color: Milky white
Outer diameter (mm): 10
Inner diameter (mm): 6.5
Minimum bending radius (mm): 24
Fluid used: Air, water
Maximum working pressure (MPa): 0.6
Overall length (m): 20

【Specification2】
Operating temperature range: Air: -20 to +60℃, Water: 0 to +50℃
Maximum operating pressure: 0.6MPa (at 23℃)
Applicable fittings: Brass fittings (Usable fluid: air, water), stainless steel fittings US2 (Used fluid: air, water)

【Material/Finish】
Super soft polyurethane

【Set contents/accessories】
－

【caution】
When running tap water, residual chlorine may be affected.
