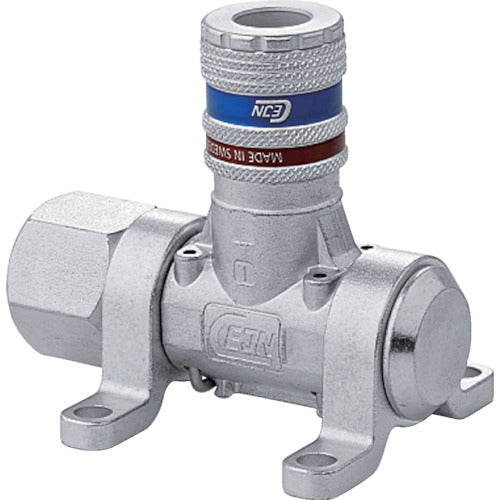

Coupling 320 eSafe Series 19-902-9201 CEJN

【Features】

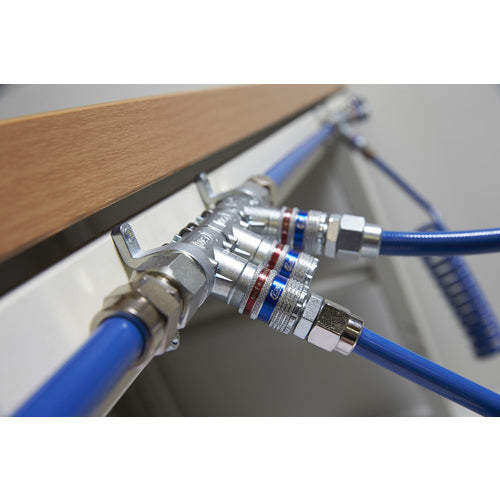

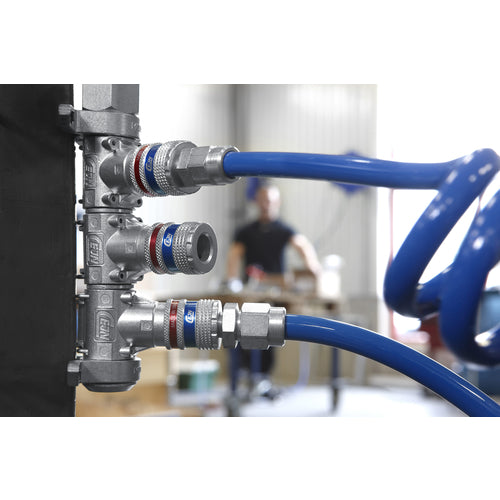

Multiple piping can be installed in a short space and in a short time.
The swivel mechanism allows the outlet to be adjusted freely.
Safe residual pressure removal function prevents accidents caused by hose recoil during separation.
The number of branches can be increased using an expansion unit.

【Use】
－

【Specification】
Maximum working pressure (MPa): 1.6
Number of branches: 1
Intake: G1/2 female thread
Fluid used: Air

【Specification2】
Operating temperature range: -20 to 100℃
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to European standard 7.4mm including series 320.
