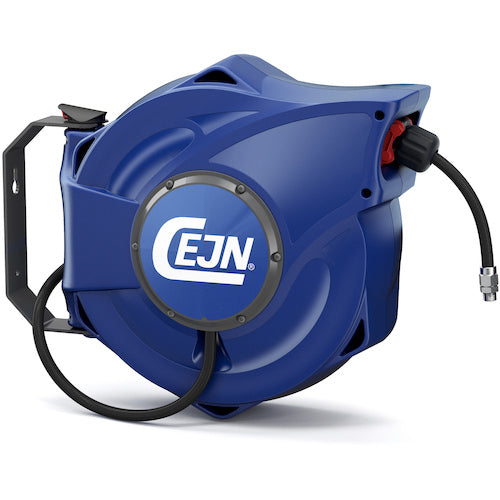

Air Reel (Anti-spark type) 19-911-2132 CEJN

【Features】

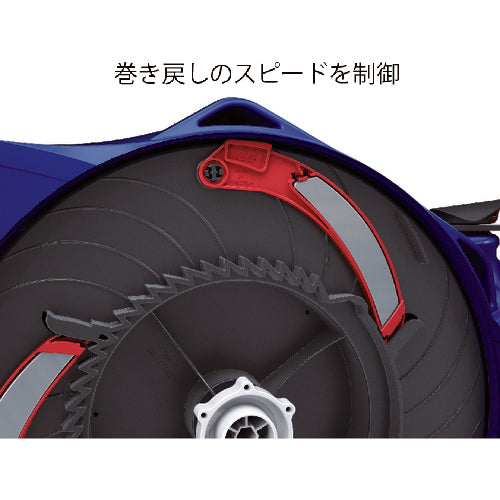

The winding control function gently winds the hose, preventing dangers caused by the hose running wild.

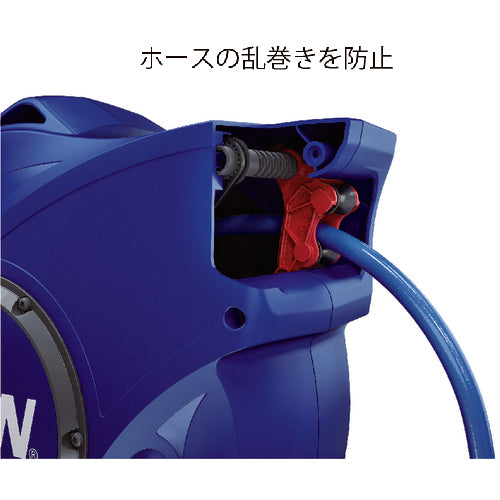

The hose guide winds the hose evenly to prevent the hose from bending when stored.
Hose can be easily replaced without disassembly.

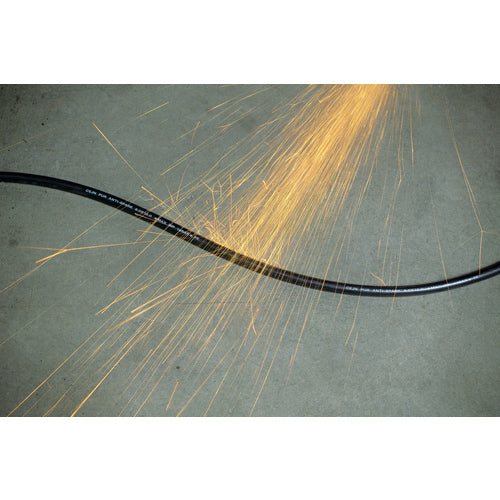

This hose is resistant to burnout caused by sparks.

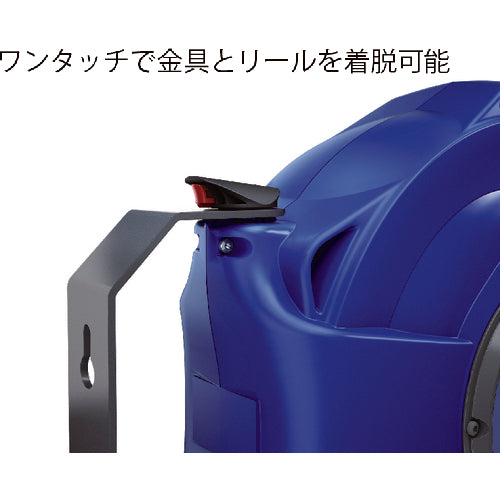

Easy to install with one touch, making installation and maintenance easy.

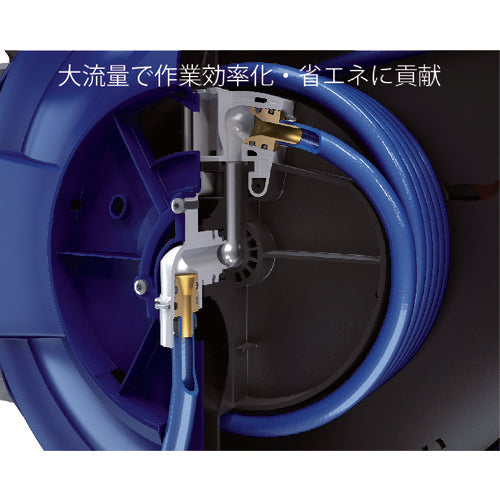

The patented large flow rate design contributes to improved work efficiency.
Comes with CE mark compliant with 2006/42/EC.

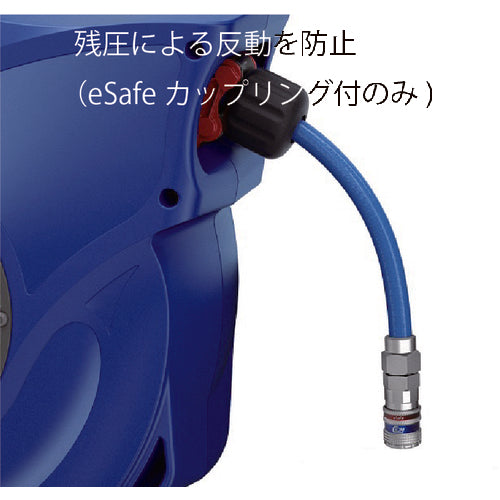

19-911-2173 comes with a residual pressure removal function coupling.
Connection fittings (primary side/secondary side) are compatible with general domestic products.

【Use】

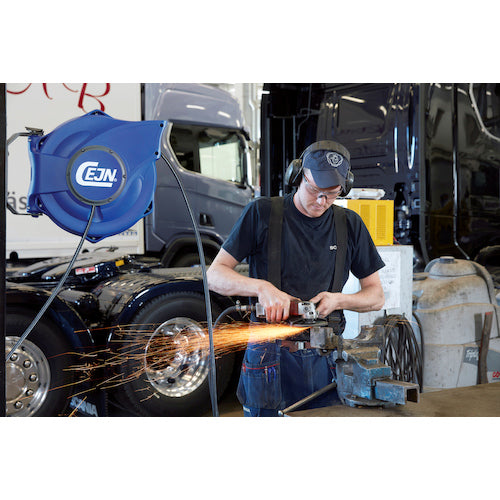

For use at welding sites and places where cutting equipment is in operation.

【Specification】
Hose inner diameter x outer diameter (mm): 9.5 x 13.5
Hose total length (m): 14
Installation primary side: R3/8
Installation secondary side: R3/8
Maximum working pressure (MPa): 1.2
Working pressure (MPa): 1.2
Width (mm): 490
Depth (mm): 190
Height (mm): 409
Outer diameter (mm): 13.5
Inner diameter (mm): 9.5
Color: Black
Total length (m) ): 14
Connection joint: Rc3/8
Fluid used: Air
Operating temperature range (℃): -20 to 60
Automatic winding type
Ratchet type stopper
Hose color: Black

【Specification2】
Hose: Anti-spark

【Material/Finish】
Body cover: Plastic
Hose: Polyurethane with braid

【Set contents/accessories】
－

【caution】
－
