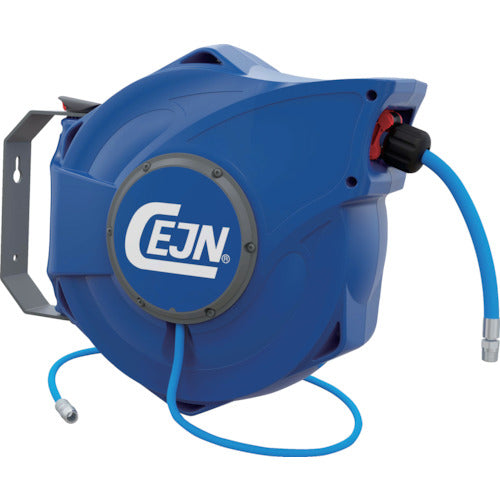

Air Reel (Anti-static type) 19-911-2510 CEJN

【Features】
The winding control function gently winds the hose, preventing dangers caused by the hose running wild.
The hose prevents static electricity and is less likely to generate sparks.
The hose guide winds the hose evenly to prevent the hose from bending when stored.
Hose can be easily replaced without disassembly.
Easy to install with one touch, making installation and maintenance easy.
The patented large flow rate design contributes to improved work efficiency.
Comes with CE mark compliant with 2006/42/EC.

【Use】

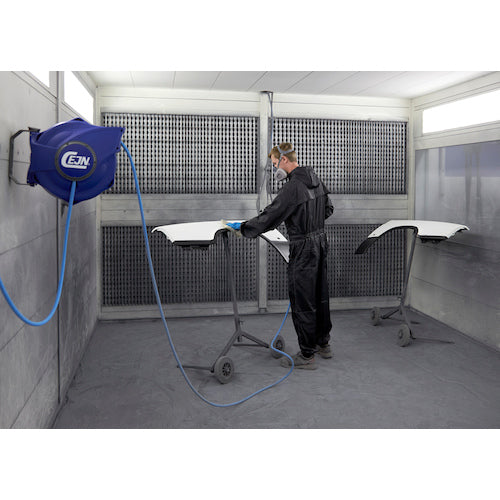

For painting work and applications that require explosion protection.

【Specification】
Hose inner diameter x outer diameter (mm): 10 x 17.5
Hose total length (m): 10
Installation primary side: R3/8
Installation secondary side: R3/8
Hose primary side total length (m): 1.5
Hose Secondary side total length (m): 10
Maximum working pressure (MPa): 1.2
Working pressure (MPa): 1.2
Width (mm): 490
Depth (mm): 190
Height (mm): 409
Outside Diameter (mm): 17.5
Inner diameter (mm): 10
Applicable tube outer diameter (mm): 17.5
Overall length (m): 10
Connection fitting: Rc3/8
Fluid used: Air
Operating temperature range (℃): -20～60
Automatic winding type
Ratchet type stopper
Hose color: Light blue

【Specification2】
Hose: Anti-static (anti-static)

【Material/Finish】
Body cover: Plastic
Hose: EPDM rubber with blade

【Set contents/accessories】
－
