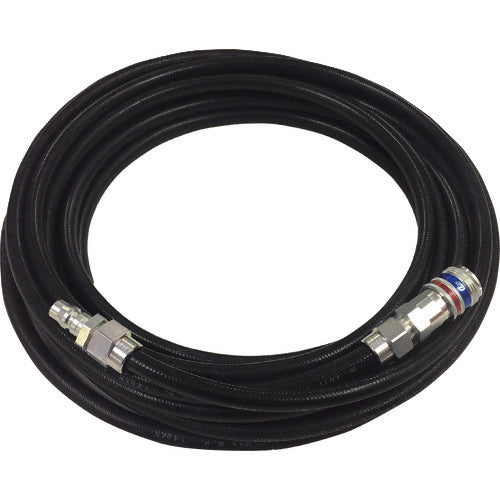

Straight Hose Kit 19-958-9024 CEJN

【Features】
The coupling has a residual pressure removal function (purge function) that automatically removes residual pressure, so it can be safely removed.

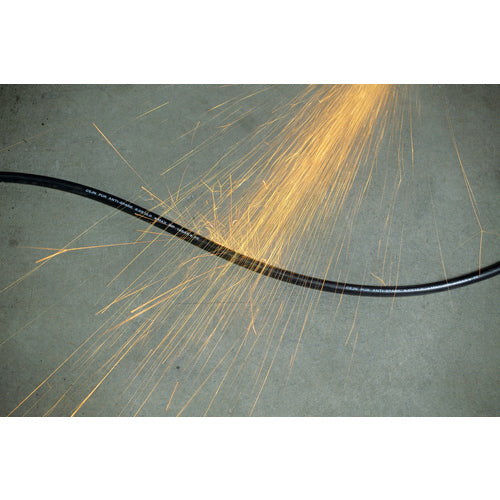

This hose is resistant to burnout caused by sparks.
Already assembled and ready for use.

【Use】
For use at welding sites and places where cutting equipment is in operation.

【Specification】
Color: Black
Outer diameter (mm): 16
Inner diameter (mm): 11
Overall length (m): 10
Wall thickness (mm): 2.5
Connection joint: Coupling/nipple with residual pressure removal function (Series 315) )
Working pressure (MPa): 1.2
Operating temperature range (℃): -20 to 60
Working fluid: Air
Maximum working pressure (MPa): 1.2
Overall length (mm): 10
Operating range (m): 10
Hose inner diameter x outer diameter (mm): 11 x 16

【Specification2】
With couplings on both ends

【Material/Finish】
Hose: Ester-based polyurethane
Coupling: Steel

【Set contents/accessories】
－

【caution】
Compatible with domestic general products.
