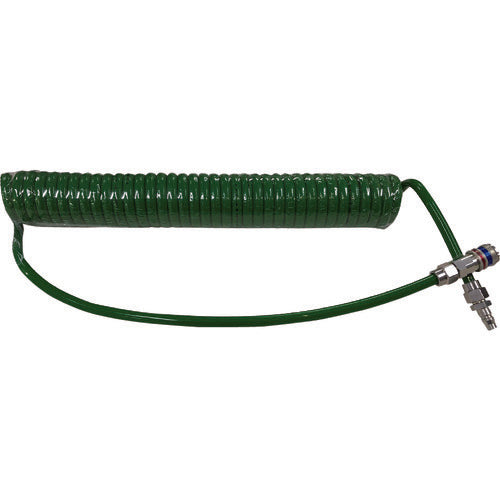

Spiral Hose Kit 19-958-9028 CEJN

【Features】

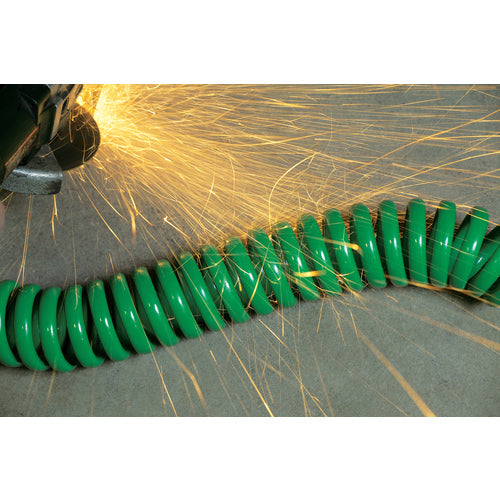

This hose is resistant to burnout caused by sparks.
The coupling has a residual pressure removal function (purge function) that automatically removes residual pressure, so it can be safely removed.
Polyurethane hose with excellent durability and flexibility.
Already assembled and ready for use.
Compatible with domestic general products.

【Use】
For use at welding sites and places where cutting equipment is in operation.

【Specification】
Coil diameter (mm): 52
Color: Green
Hose inner diameter x outer diameter (mm): 6.5×10
Usage range (m): 6
Total length (mm): 1120
Coil length (mm): 520
Outside Diameter (mm): 10
Inner diameter (mm): 6.5
Overall length (m): 6
Maximum operating pressure (MPa): 1.0
Operating temperature range (℃): -20 to 60
Using fluid: Air

【Specification2】
Fluid temperature: -20~60℃
Working pressure: 1.0MPa
Connection fitting: Coupling/nipple with residual pressure removal function (Series 315)

【Material/Finish】
Hose: Ester-based polyurethane
Coupling: Steel

【Set contents/accessories】
－

【caution】
Compatible with domestic general products.
