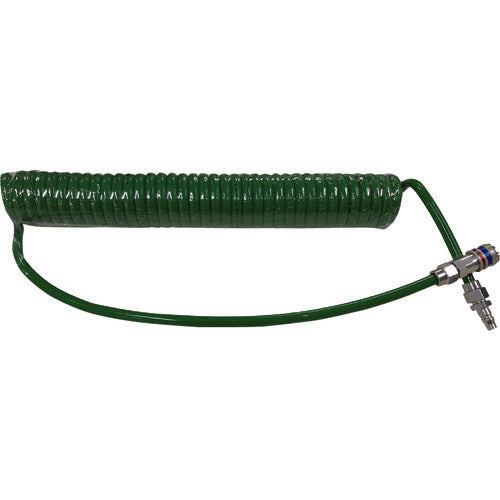

Spiral Hose Kit 19-958-9033 CEJN

【Features】

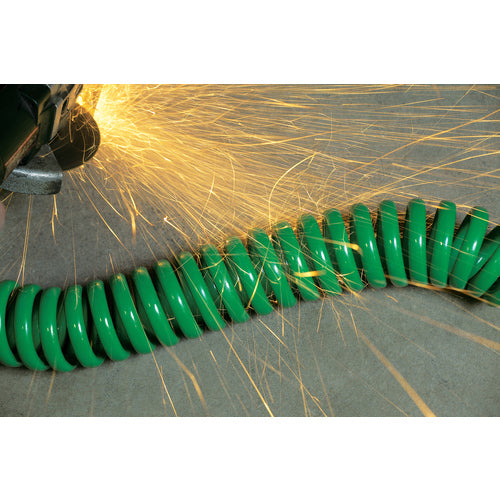

This hose is resistant to burnout caused by sparks.
The coupling has a residual pressure removal function (purge function) that automatically removes residual pressure, so it can be safely removed.
Polyurethane hose with excellent durability and flexibility.
Already assembled and ready for use.

【Use】
For use at welding sites and places where cutting equipment is in operation.

【Specification】
Coil diameter (mm): 65
Color: Green
Hose inner diameter x outer diameter (mm): 8 x 12
Usage range (m): 8
Total length (mm): 1280
Coil length (mm): 680
Outside Diameter (mm): 12
Inner diameter (mm): 8
Overall length (m): 8
Maximum working pressure (MPa): 1
Operating temperature range (℃): -20 to 60
Using fluid: Air

【Specification2】
Fluid temperature (℃): -20 to 60℃
Working pressure: 1.0MPa
Connection fitting: Coupling/nipple with residual pressure removal function (series 315)

【Material/Finish】
Hose: Ester-based polyurethane
Coupling: Steel

【Set contents/accessories】
－

【caution】
Compatible with domestic general products.
