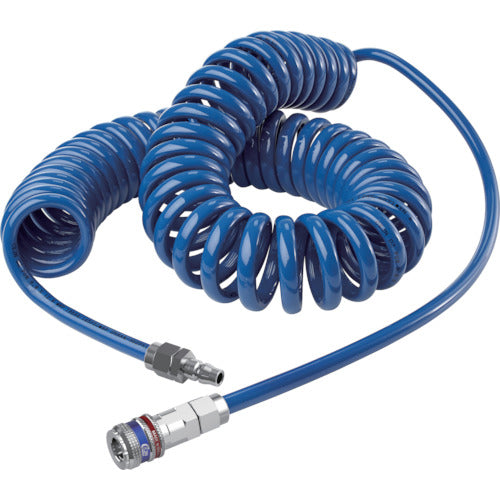

Spiral Hose Kit 19-958-9378 CEJN

【Features】
The coupling has a residual pressure removal function (purge function) that automatically removes residual pressure, so it can be safely removed.
Polyurethane hose with excellent durability and flexibility.
Already assembled and ready for use.

【Use】
For pneumatic tools and air work in maintenance shops, paint shops, and general production plants.

【Specification】
Coil diameter (mm): 95
Color: Blue
Hose inner diameter x outer diameter (mm): 11×16
Usage range (m): 2
Total length (mm): 720
Coil length (mm): 120
Outside Diameter (mm): 16
Inner diameter (mm): 11
Fluid used: Air

【Specification2】
Fluid temperature (℃): -20 to 60℃
Working pressure: 1.0MPa
Connection fitting: Coupling/nipple with residual pressure removal function (series 315)

【Material/Finish】
Hose: Ester-based polyurethane
Coupling: Steel

【Set contents/accessories】
－

【caution】
Compatible with domestic general products.
