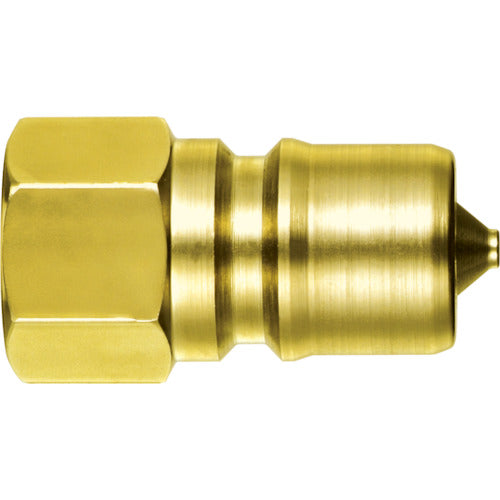

SP CUPLA type A 07887 NITTO

【Features】
The smooth shape of the plug tip makes connection operations with the socket smoother and more comfortable.
The valve's automatic return to center function improves sealing performance after separation.

【Use】
Water/chemical piping connections.
Piping connections for air, gas, and oil.

【Specification】
Proof pressure (MPa): 7.5
Usable fluid: water, chemicals, air, gas, hydraulic oil
Usable temperature range (℃): -20 to 80
Maximum operating pressure (MPa): 5.0
Mating side mounting size: R1 /8
Total length (mm): 29
Nitto Kohki SP-A coupler series

【Specification2】

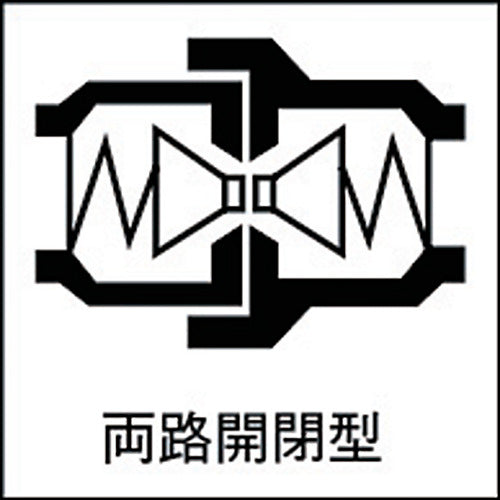

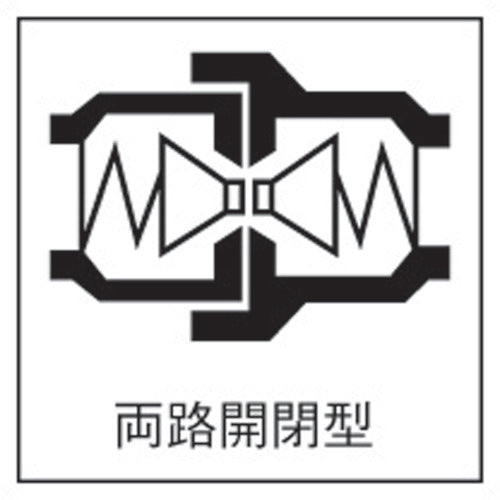

Double-way open/close type

【Material/Finish】
Body: Brass
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
