Nut CUPLA 200(One-touch Type) 71734 NITTO

【Features】
Easy and secure attachment of urethane hoses. To attach it to a hose, simply insert it into the nipple and tighten the nut.

【Use】
－

【Specification】
Proof pressure (MPa): 2.0
Mating hose size (mm): 6.5×10.0
Fluid used: Air
Maximum operating pressure (MPa): 1.5
Operating temperature range (℃): -20 to 60
Applicable coupler: Nitto Kohki High Coupler Series

【Specification2】

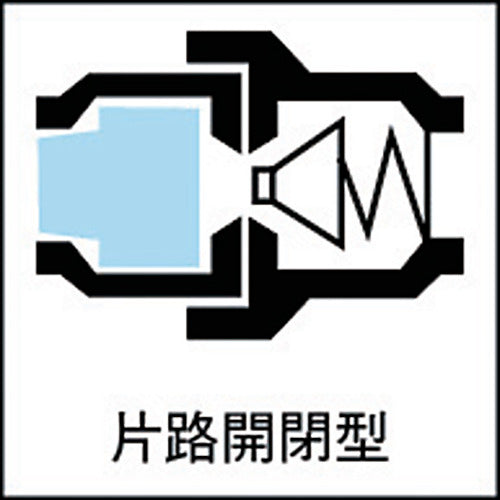

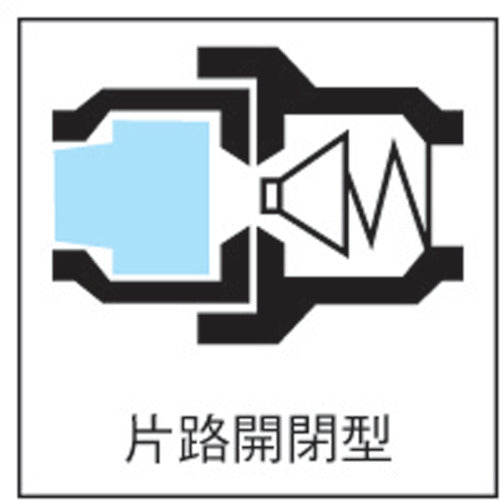

One-way open/close type

【Material/Finish】
Body: Steel (chrome plated)
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
