SP CUPLA type A 07909 NITTO

【order ID】2921651
【basic item number】07909
【brand name】NITTO
【minimum order quantity】1Pcs
【packages】5
【manufacturer name】NITTO KOHKI CO.,LTD.
【Country of origin】Japan
【Weight】0.95KG
【Features】
The smooth shape of the plug tip makes connection operations with the socket smoother and more comfortable.
The valve's automatic return to center function improves sealing performance after separation.

【Use】
Piping connections for air, gas, and oil.

【Specification】
Proof pressure (MPa): 6.5
Mating side mounting size: R1
Fluid used: Air, gas, hydraulic oil
Maximum working pressure (MPa): 4.5
Operating temperature range (℃): -20 to 80
Overall length (mm) ): 102
Applicable coupler: Nitto Kohki SP-A coupler series

【Specification2】

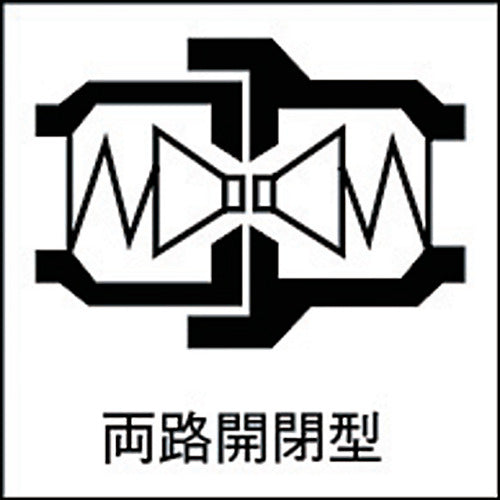

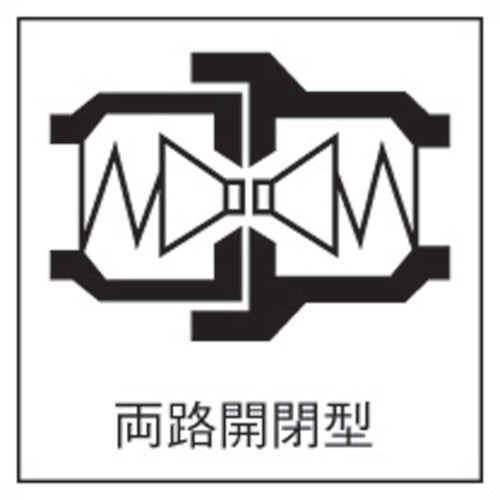

Double-way open/close type

【Material/Finish】
Body: Steel (nickel plated)
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
－
¥14,563
¥14,563
Sold out
