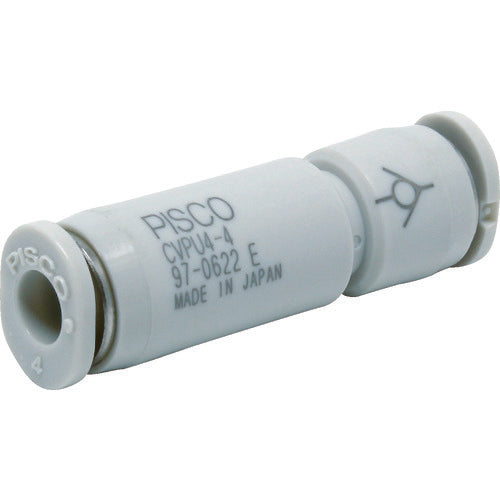

Check Valve Union Straight CVPU4-4 PISCO
Check Valve Union Straight CVPU4-4 PISCO
  • Load image into Gallery viewer, Check Valve Union Straight CVPU4-4 PISCO
  • Load image into Gallery viewer, Check Valve Union Straight CVPU4-4 PISCO

Check Valve Union Straight CVPU4-4 PISCO

【order ID】2907658
【basic item number】CVPU44
【brand name】PISCO
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】NIHON PISCO CO., LTD.
【Country of origin】Japan
【Weight】3.700G

Since it sends air input from one side only, pressure on the output side can be kept.Can be used for vacuum retention and piping at low pressure.Compatible Tube Outer Diameter D (mm):4 x 4Working fluid: AirWorking temperature range: 0 to 60C(without freezing)Working pressure: 0.9MPaMin operation differential pressure: 0.01MPa or lessMin check differential pressure: 0.04MPaMain body: Brass + electroless nickel plate + polybutylene terephthalate(PBT)Seal rubber: Nitrile rubber(NBR)Valve body packing: Fluorine rubber(FKM)(except for CVPU8-8)

¥779
¥779
Sold out
