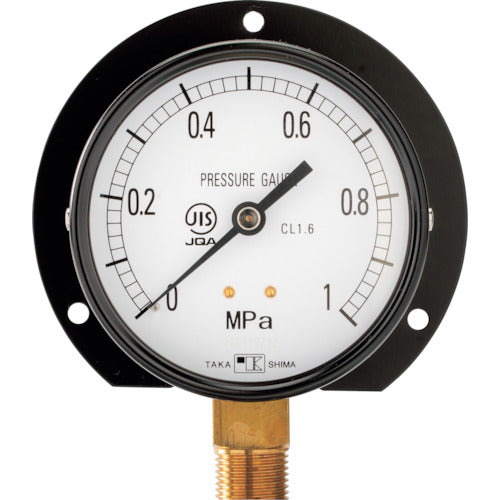

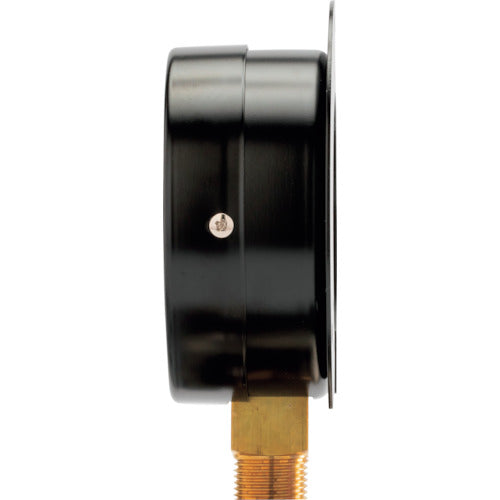

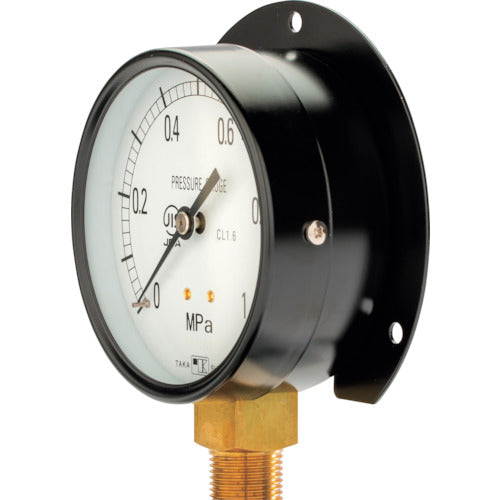

Pressure Gauge 1014025 Takashima

【Features】
Can be widely used as a basic pressure gauge.
A highly reliable pressure gauge with a rich track record of production.
Manufactured based on JIS B7505 Bourdon tube pressure gauge standard.

【Use】
For general use and indoor use.

【Specification】
Pressure range (MPa): 0.0 to 0.25
Minimum scale (MPa): 0.005
Designation: ST B R1/4 60×0.25MPa
Shape: B type
Outer diameter (mm): 60
Measuring fluid: Gas, liquid
Wetted parts material: Stock: Brass (C3604), Bourdon tube: Brass (C2700/C2680)
Accuracy: ±1.6%F.S
Connection part size: R1/4

【Specification2】
－

【Material/Finish】
Outer frame material: SPC/black paint

【Set contents/accessories】
－

【caution】
－
