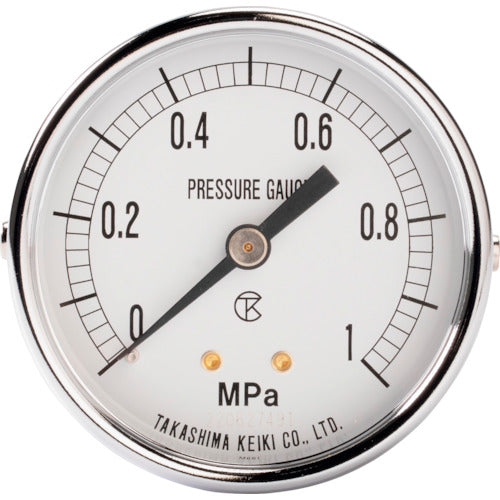

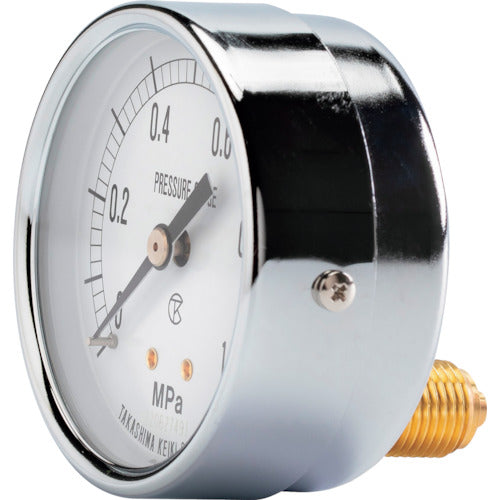

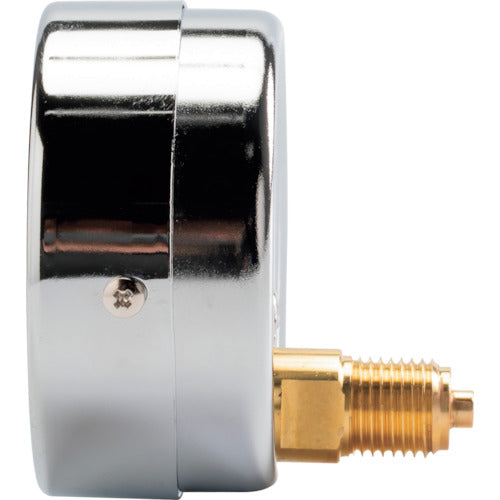

Pressure Gauge 1018110 Takashima

【Features】
Manufactured based on JIS B7505 Bourdon tube pressure gauge standard.
Can be widely used as a basic pressure gauge.
A highly reliable pressure gauge with a rich track record of production.

【Use】
－

【Specification】
Pressure range (MPa): 0.0 to 1
Minimum scale (MPa): 0.02
Designation: ST D2 R1/4 60×1MPa
Shape: D type
Outer diameter (mm): 60
Measured fluid: Gas, fluid
Wetted parts material:
Stock: Brass (C3604)
Bourdon tube: Brass (C2680.C2700)
Accuracy: ±1.6%F.S
Connection part size: R1/4

【Specification2】
－

【Material/Finish】
－

【Set contents/accessories】
－

【caution】
－
