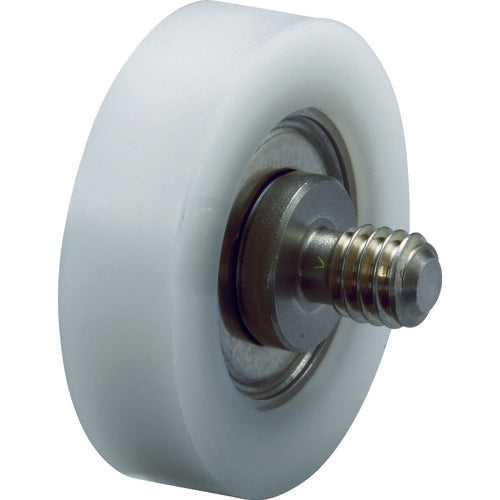

Engineering Plastics Coated Precision Bearing TEFS1304 TRUSCO

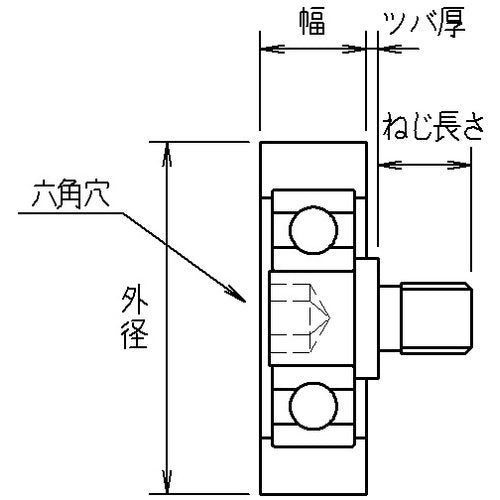

Bearings wound with resin, with low noise during rotation.Metal bearings, on whose circumference polyacetal (POM) resin superior in wear resistance is formed, with low noise and low vibration.RoHS directive compliant product.Bearing:SMR104ZZOuter Diameter (mm):13Roller Screw Dimension:M4Screw Length (mm):5W (mm):5Head Thickness (mm):1.0Hexagon Socket (mm):2.0Approximate load (N):49.0Working Temperature Range: -20 to 105degreesCWith a clearance groove at the root of the hexagon screw.Bearing: stainless steel(SUS440C)JIS grade 0Peripheral Part: Polyacetal resin (POM)Shaft screw: stainless steel(SUS 303)
