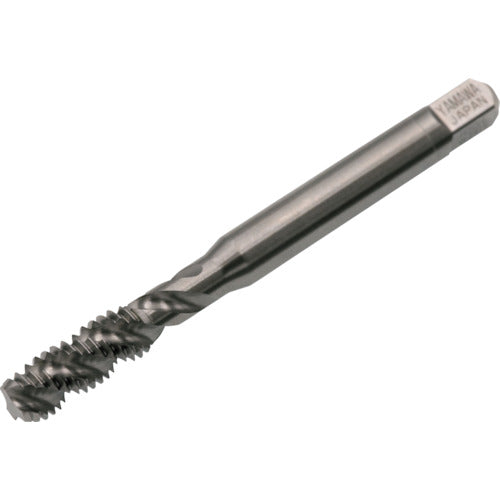

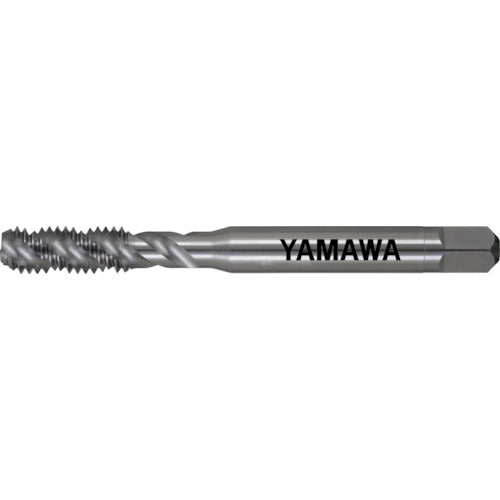

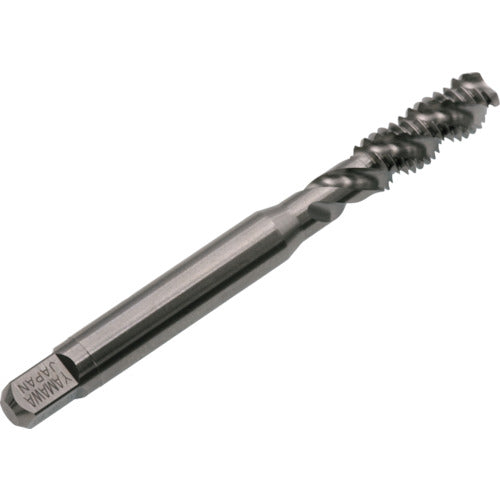

Spiral Fluted Tap for Aluminum 1.5P SY3.5HQLENA YAMAWA

【Features】
A tap that eliminates chip clogging and chip clogging when cutting aluminum die castings and aluminum castings, and eliminates the problem of internal threads becoming loose.

【Use】
For blind hole machining.
Work material: Brass, brass castings, bronze, aluminum rolled materials, aluminum alloy castings, magnesium alloy castings, zinc alloy castings.

【Specification】
Accuracy: P2
Accuracy notation: P class
Nominal size: M3.5
Pitch (mm): 0.6
Thread length (mm): 11
Overall length (mm): 52
Shank diameter (mm): 5
Shank Square part (mm): 4
Pilot hole diameter (mm): 2.97
Number of biting threads: 1.5 threads
Processing thread: metric thread
Surface treatment: Nitriding treatment
Neck length (mm): 16
Number of grooves: 3

【Specification2】
Shank length: 29mm
Shank square part length: 7mm

【Material/Finish】
High speed tool steel (HSS)

【Set contents/accessories】
－

【caution】
－
