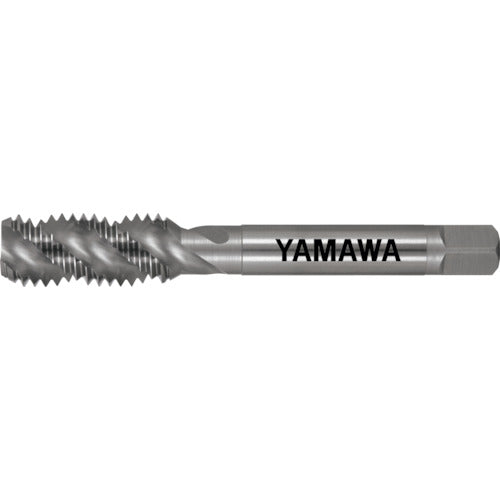

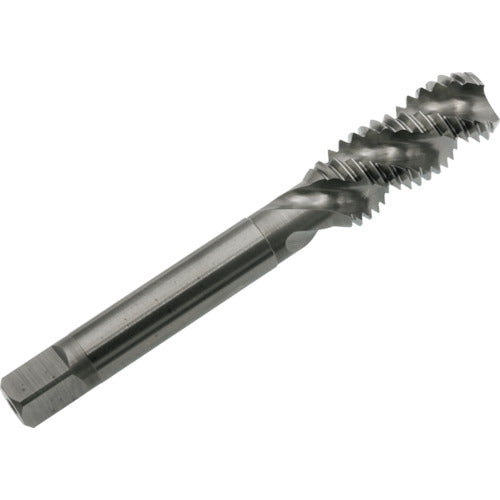

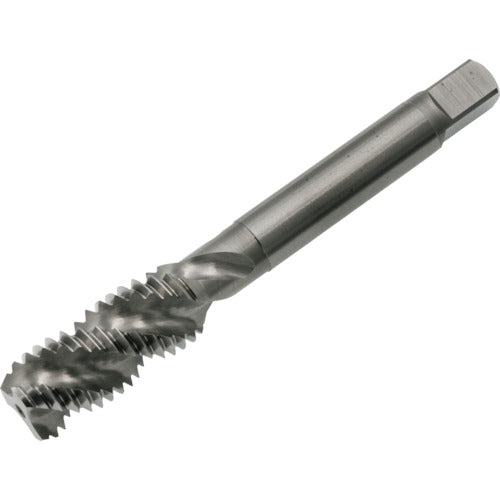

Spiral Fluted Tap for Aluminum 1.5P SY010MRLENA YAMAWA

【Features】
A tap that eliminates chip clogging and chip clogging when cutting aluminum die castings and aluminum castings, and eliminates the problem of internal threads becoming loose.

【Use】
For blind hole machining.
Work material: Brass, brass castings, bronze, aluminum rolled materials, aluminum alloy castings, magnesium alloy castings, zinc alloy castings.

【Specification】
Accuracy: P3
Accuracy notation: P class
Nominal dimension: M10
Pitch (mm): 1
Thread length (mm): 23
Overall length (mm): 75
Shank diameter (mm): 7
Shank square part (mm): 5.5
Pilot hole diameter (mm): 9.09
Number of biting threads: 1.5 threads
Processing thread: metric thread
Surface treatment: Nitriding treatment
Number of grooves: 3

【Specification2】
Shank length: 38mm
Shank square part length: 8mm
Number of grooves: 3

【Material/Finish】
High speed tool steel (HSS)
