Idler Sprocket ID40C13D12 KATAYAMA

【order ID】2244659
【basic item number】ID40C13D12
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】140.000G

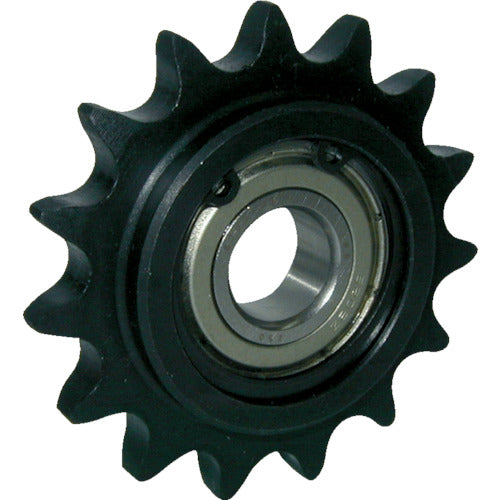

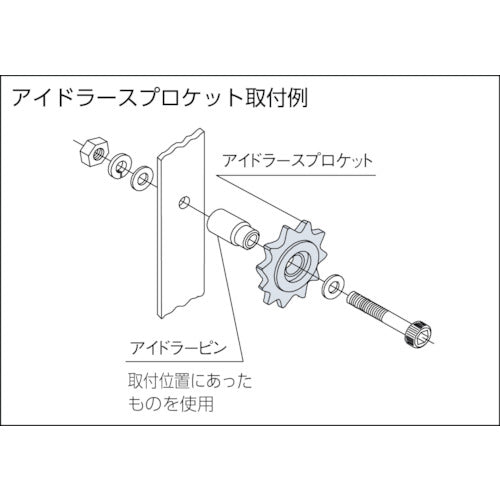

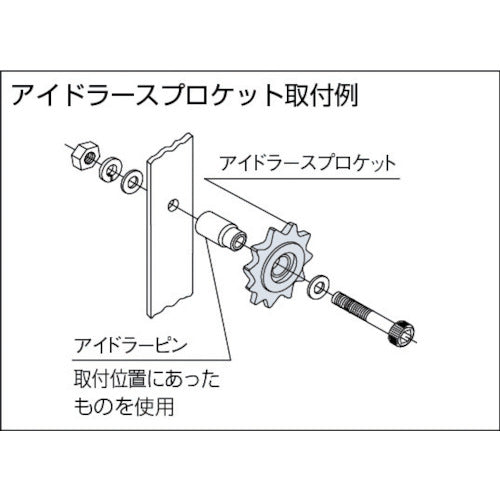

Idler sprocket holds appropriate tension during power transmission of roller chain. Excellent in durability, and can obtain smooth and quiet rotation.The tips of the teeth are hardened, having excellent durability.For adjustment of chain elongation by combining idler, pin and tightener.Chain No.:40Number of teeth:13Outer Diameter (mm):59Reference diameter (mm):53.07Inner Ring Diameter (mm):12Boss Diameter (mm):38Total width (mm):14Compatible Idler Shaft:IDP6001Sprocket: Carbon steel for mechanical structuresHeat Treatment: Tooth tip induction quenchingSurface Treatment: Black Dye

¥1,244
¥1,244
Sold out

Delivery：approximate 2-3 business days to ship from Japan
