Idler Sprocket ID40C19D20 KATAYAMA
Idler Sprocket ID40C19D20 KATAYAMA
Idler Sprocket ID40C19D20 KATAYAMA
  • Load image into Gallery viewer, Idler Sprocket ID40C19D20 KATAYAMA
  • Load image into Gallery viewer, Idler Sprocket ID40C19D20 KATAYAMA
  • Load image into Gallery viewer, Idler Sprocket ID40C19D20 KATAYAMA

Idler Sprocket ID40C19D20 KATAYAMA

【order ID】2244683
【basic item number】ID40C19D20
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】400.000G

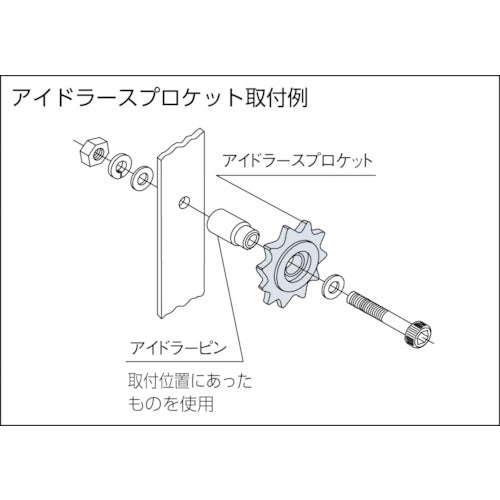

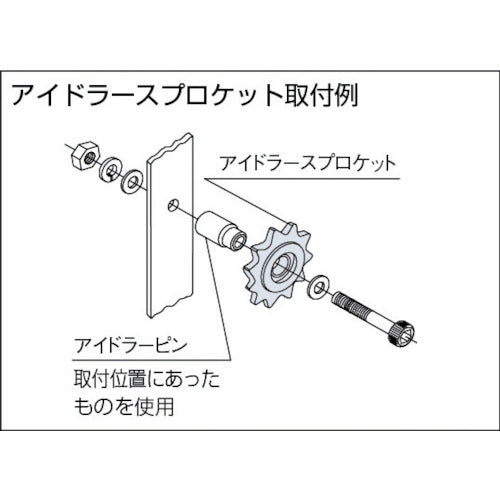

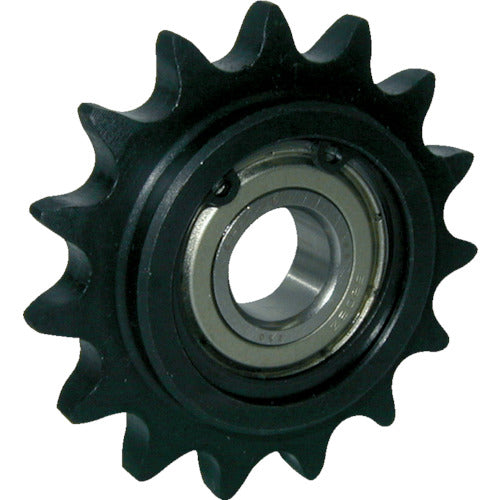

Idler sprocket holds appropriate tension during power transmission of roller chain. Excellent in durability, and can obtain smooth and quiet rotation.The tips of the teeth are hardened, having excellent durability.For adjustment of chain elongation by combining idler, pin and tightener.Chain No.:40Number of teeth:19Outer Diameter (mm):84Reference diameter (mm):77.16Inner Ring Diameter (mm):20Boss Diameter (mm):60Total width (mm):21Compatible Idler Shaft:IDP6204Sprocket: Carbon steel for mechanical structuresHeat Treatment: Tooth tip induction quenchingSurface Treatment: Black Dye

¥1,819
¥1,819
Sold out

Delivery：approximate 2-3 business days to ship from Japan
