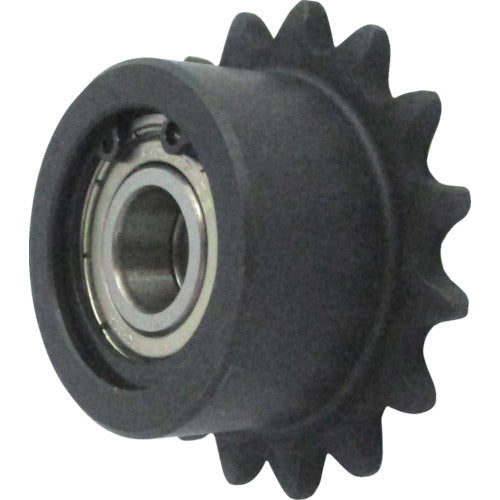

B-type Double Idler Sprockets WID35B16D12 KATAYAMA
B-type Double Idler Sprockets WID35B16D12 KATAYAMA
B-type Double Idler Sprockets WID35B16D12 KATAYAMA
  • Load image into Gallery viewer, B-type Double Idler Sprockets WID35B16D12 KATAYAMA
  • Load image into Gallery viewer, B-type Double Idler Sprockets WID35B16D12 KATAYAMA
  • Load image into Gallery viewer, B-type Double Idler Sprockets WID35B16D12 KATAYAMA

B-type Double Idler Sprockets WID35B16D12 KATAYAMA

【order ID】7949952
【basic item number】WID35B16D12
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】0.150KG

Since it adopts a B-type shape, it is easy to design if the driving/driven side is in the same shape.Tensioner.Chain No.:35Number of teeth:16Outer Diameter (mm):54Reference diameter (mm):48.82Inner Ring Diameter (mm):12Boss Diameter (mm):38Total width (mm):22Compatible Idler Shaft:IDP6001WB-type shapeUses 2 bearings.Product excellent in load resistance.Carbon Steel for Mechanical Structures

¥1,723
¥1,723
Sold out

Delivery：approximate 2-3 business days to ship from Japan
