Double Idler Sprocket WID80C10D17 KATAYAMA
Double Idler Sprocket WID80C10D17 KATAYAMA
Double Idler Sprocket WID80C10D17 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C10D17 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C10D17 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C10D17 KATAYAMA

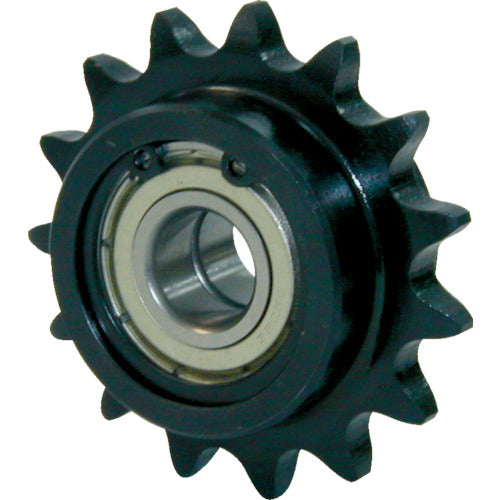

Double Idler Sprocket WID80C10D17 KATAYAMA

【order ID】3337928
【basic item number】WID80C10D17
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】640.000G

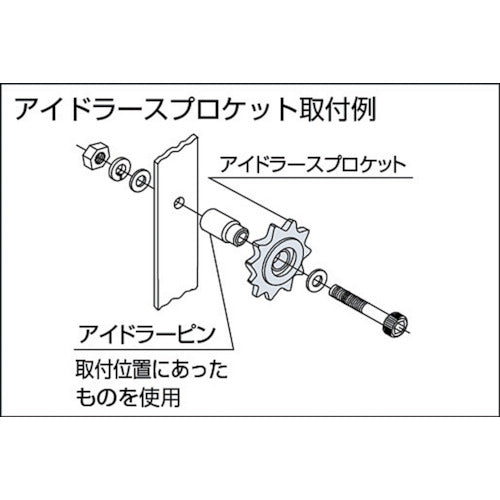

Holds appropriate tension during power transmission of roller chain.Excellent in durability, and can obtain smooth and quiet rotation.For adjustment of chain elongation by combining idler, pin and tightener.Chain No.:80Number of teeth:10Outer Diameter (mm):93Reference diameter (mm):82.20Inner Ring Diameter (mm):17Boss Diameter (mm):52Total width (mm):31Compatible Idler Shaft:IDP6203WSprocket: Carbon steel for mechanical structuresHeat Treatment: Tooth tip induction quenchingSurface Treatment: Black Dye

¥3,637
¥3,637
Sold out

Delivery：approximate 2-3 business days to ship from Japan
