Double Idler Sprocket WID80C11D20 KATAYAMA
Double Idler Sprocket WID80C11D20 KATAYAMA
Double Idler Sprocket WID80C11D20 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C11D20 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C11D20 KATAYAMA
  • Load image into Gallery viewer, Double Idler Sprocket WID80C11D20 KATAYAMA

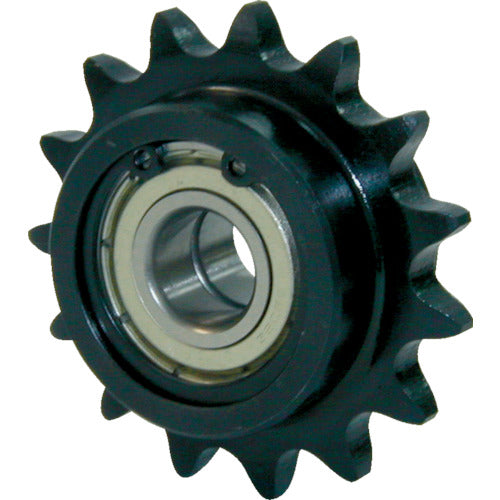

Double Idler Sprocket WID80C11D20 KATAYAMA

【order ID】3337936
【basic item number】WID80C11D20
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】800.000G

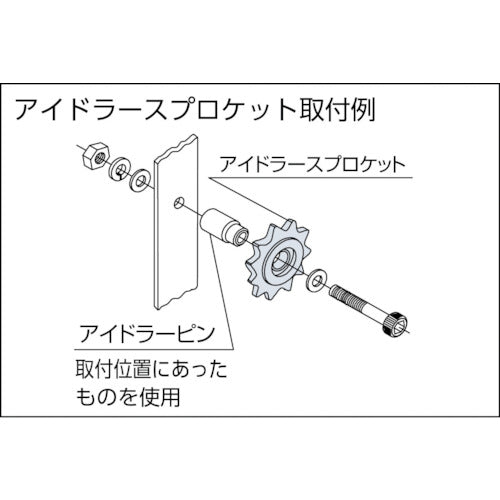

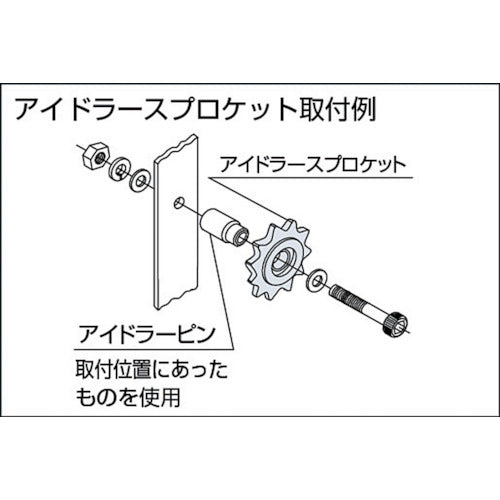

Holds appropriate tension during power transmission of roller chain.Excellent in durability, and can obtain smooth and quiet rotation.For adjustment of chain elongation by combining idler, pin and tightener.Chain No.:80Number of teeth:11Outer Diameter (mm):102Reference diameter (mm):90.16Inner Ring Diameter (mm):20Boss Diameter (mm):60Total width (mm):35Compatible Idler Shaft:IDP6204WSprocket: Carbon steel for mechanical structuresHeat Treatment: Tooth tip induction quenchingSurface Treatment: Black Dye

¥3,829
¥3,829
Sold out

Delivery：approximate 2-3 business days to ship from Japan
