ONE-TOUCH SEALING GROMMETS 210-032-534 SUGATSUNE

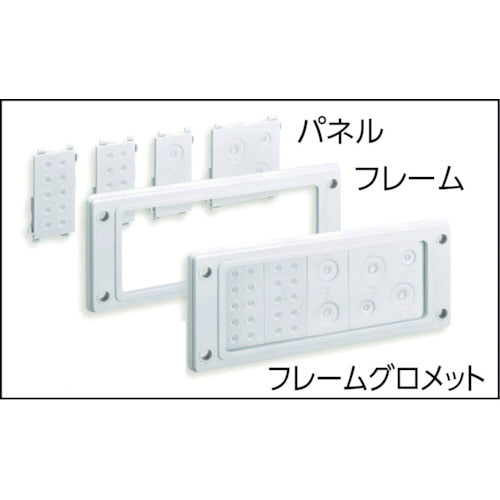

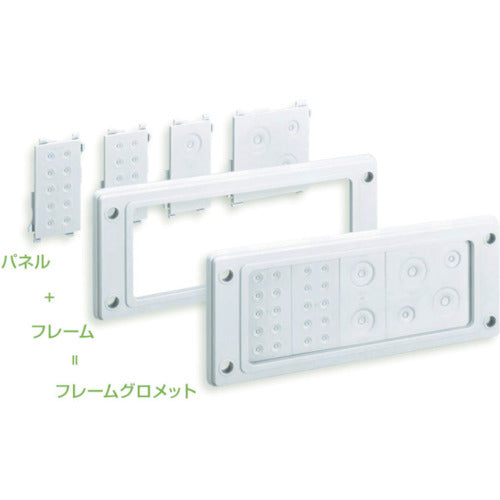

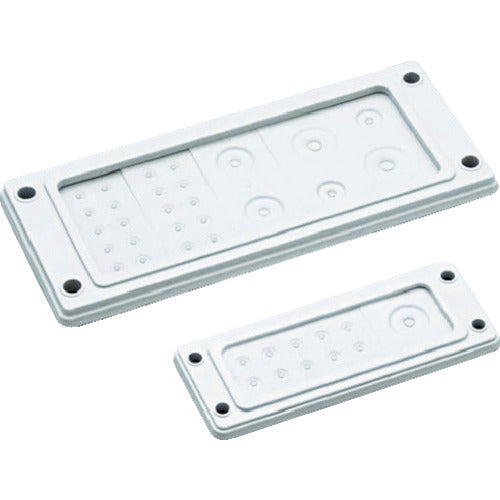

Positions of wiring holes can be changed by replacing panels.Conventional grommets required hole drilling as many times as the number of cables, but the Frame Grommet can pass multiple cables with one hole.Other One-touch Grommet series can be attached.Length (mm):214Height (mm):90Thickness (mm):9.0Panel set content:A x 3, B x 1, D x 1Color: Light grayWorking temperature: -20 to 125CWaterproof/dustproof(IP65 compatible)Uses flame retardant material(UL94HB compatible)Polypropylene(PP)/Elastomer(TPE)Do not use plain washers to maintain waterproof and dustproof properties.Recommended screws are M6 bolt and nut except for countersunk head for T-2665405 and M8 bolt and nut except for countersunk head for other products.
