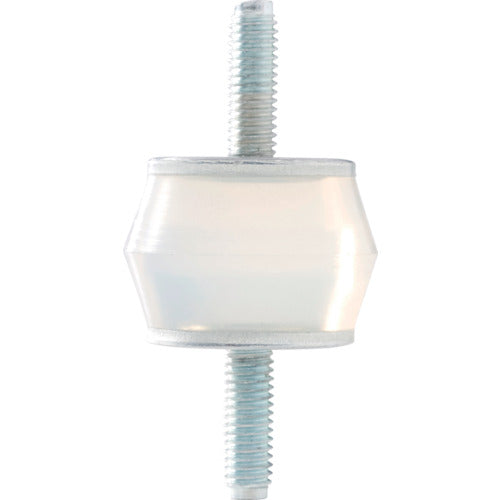

Vibration Damper Insulator MN-7 Taica

Because the natural frequency is designed to be low, it is capable of isolating vibrations in the low frequency range.A single-molded type where bolts are set in the top and bottom.With four points of support, it can isolate the vibrations of equipment weighing 1.6 to 100kg.Isolating vibration of pump, compressor, precision equipment, measuring instrument.Recommended Frequencies(Hz):16 and upProper Load(kg):5.5 to 8.5Outer Dimensions (mm):24\30Gel Height(mm):22Total Height (mm):58Screw Dimension:M6Rubber: Silicone GelBolts: Iron(trivalent chromate plating)
