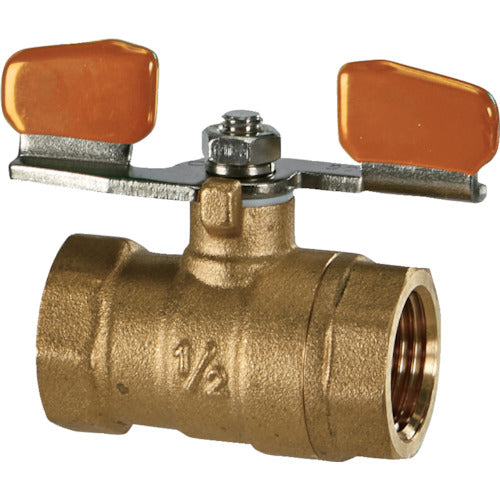

Ball Valve BAV-BFBH25A TRUSCO

【Features】
Can be installed in narrow spaces and is easy to operate.
Full-bore type with low pressure loss, suitable for piping with large flow rate.

【Use】
For water, oil, and air. (Steam is not allowed)

【Specification】
Nominal diameter A: 25
Nominal diameter B: 1
Overall length (mm): 71.5
Height (mm): 58.5
Handle length D (mm): 103
Maximum allowable pressure (MPa): 4.2MPa (room temperature water・Oil), 1.0MPa (air at room temperature), 0.7MPa (cold/hot water below 120 degrees, oil, air)
Compatible fluid: For water, oil, air. (Steam is not allowed)

【Specification2】
Maximum allowable pressure: 4.2MPa (room temperature water/oil), 1.0MPa (room temperature air), 0.7MPa (cold/hot water/oil/air below 120 degrees)
Full bore type

【Material/Finish】
Brass (C3771B)

【Set contents/accessories】
－

【caution】
－
