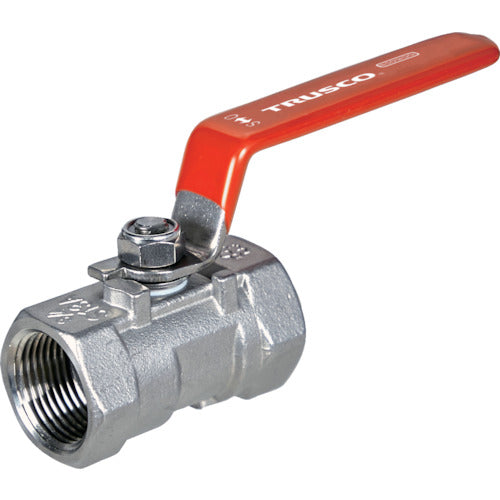

Stainless Ball Valve BAVSR10A 4500 TRUSCO

【Features】
A ball valve used for cold and hot water, oil, and air.

【Use】
For water, oil, and air. (Steam is not allowed)

【Specification】
Nominal diameter A: 10
Nominal diameter B: 3/8

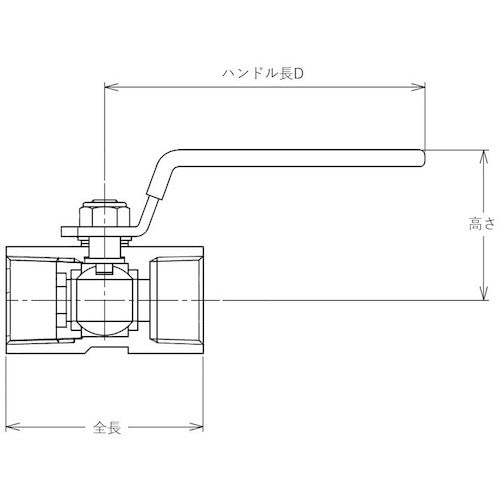

Overall length (mm): 44
Height (mm): 44
Handle length D (mm): 63
Maximum allowable pressure (MPa): 5.5
Connection: screw connection

【Specification2】
Maximum allowable pressure: 5.5MPa (water/oil at room temperature), 1.0MPa (air at room temperature, water below 100℃, oil below 195℃)
Reduced bore type

【Material/Finish】
Stainless steel (SCS13A)

【Set contents/accessories】
－

【caution】
－
