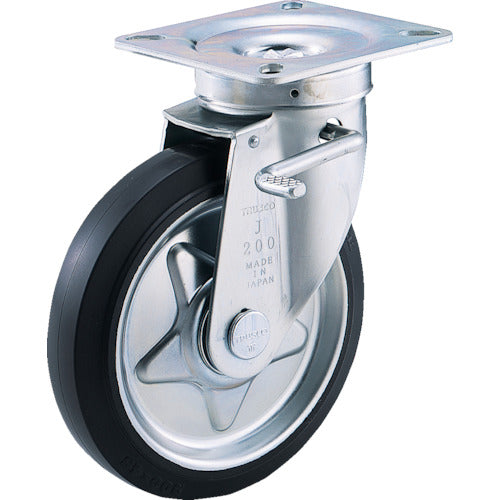

Press Caster(Rubber Wheel) TJB-150 TRUSCO

Steel wheels are shaped like a star with distinctive design characteristics. (registered design)The adjustable pivot part adopts a double bearing, smooth rotation was achieved.The wheel rotating part has excellent durability with commercial bearing.(daN):200Allowable Weight (kgf):204Wheel Diameter D (mm):150Wheel Width (mm):45Mounting Height H (mm):198Mounting Plate A x B (mm):120 x 120Mounting Pitch X x Y (mm):75 to 90 x 75 to 90Mounting Hole Diameter P (mm):11.0Plate TypeWheel Rotation Part: Commercial Bearing InputFlexible Type (with double stopper)Simultaneously lock the turning part and the wheelMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Steel Wheel, Rubber
