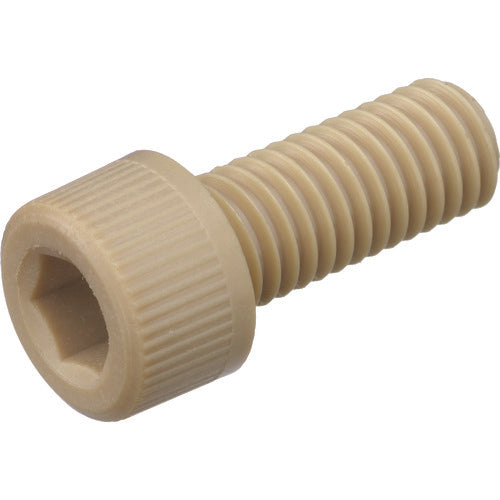

Hexagon Socket Head Cap Screw BPPS-CBM3X12 TRUSCO

【Features】
PPS is an engineering plastic with excellent crystalline strength and heat resistance.
Reinforced with 40% glass fiber, it has the highest strength among plastic screws.
It also has high heat resistance, wear resistance, and advanced electrical properties under high temperature, high humidity, and high frequency conditions.
Used in electrical and electronic parts, automobile parts, chemical and mechanical parts, etc.

【Use】
For heat resistance.
For insulation.
For chemical resistance.
For insulation.
For corrosion resistance.
For lightweight use.

【Specification】

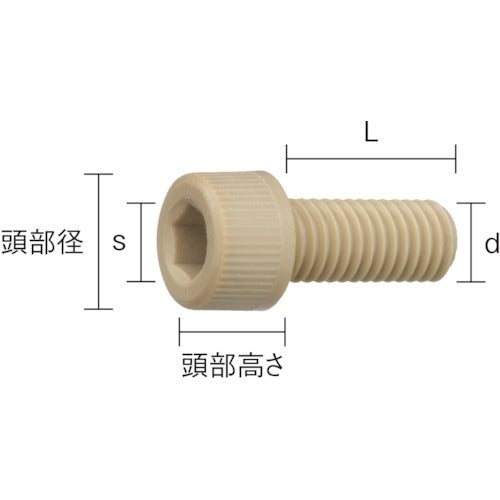

Dimensions (mm) D: M3
Dimensions (mm) L: 12
Thread pitch (mm): 0.5
Head diameter (mm): 5.5
Head thickness (mm): 3.0
Size across hexagon hole (mm) ): 2.5
Thread designation (d): M3
Thread pitch (P): 0.5
dk: 5.5
k: 3
s: 2.5

【Specification2】

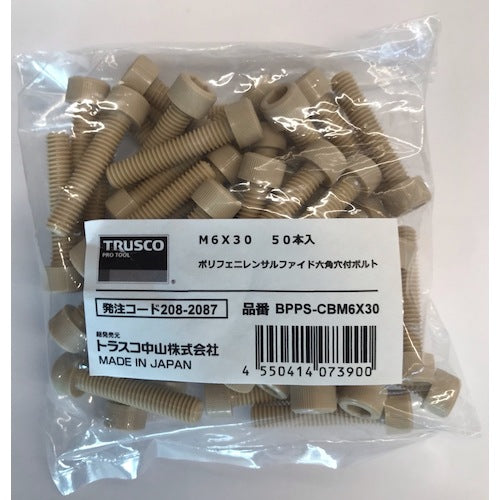

Package: bag

【Material/Finish】
Polyphenylene sulfide (PPS)

【Set contents/accessories】
－

【caution】
There may be black spots (sludge) on the exterior, but this will not affect performance.
・The remaining gate at the screw tip is less than 5% of the length (L).
Heat resistance and chemical resistance vary depending on usage conditions, so be sure to test under usage conditions in advance.
・There may be slight discoloration depending on the lot and various conditions.
・Please use a torque driver and torque wrench for tightening.
