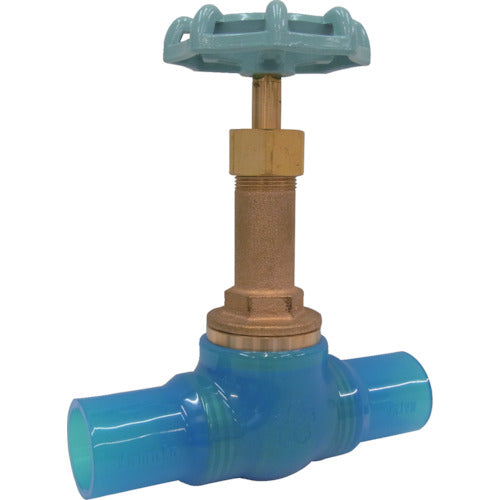

Bronze Gate Valve With Clear PVC Fitting B10ESGN 13A YAMATOVALVE

【Features】
Since this is a gate valve with an integrated valve socket, it can be directly connected to hard PVC pipes.
No need for valve socket, seal tape, or adjustable wrench.
No screw-in work required; piping work can be done by simply gluing.

【Use】
Water supply line
Air conditioning/sanitation line
Machine cooling water/circulating water line
Pool water piping line
Agricultural water distribution line

【Specification】

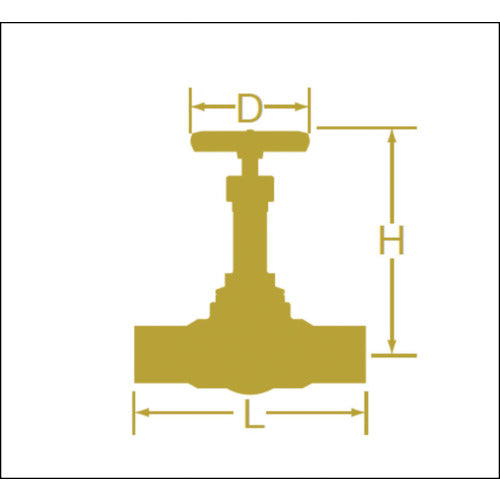

Nominal diameter A: 13
Nominal diameter B: 1/2
Overall length (mm): 108
Height (mm): 134.5
Handle diameter D (mm): 55
Maximum allowable pressure (MPa): 1
Operating temperature Range (℃): 0 to 45
Compatible fluid: tap water, fresh water
Handle diameter (mm)
H (mm): 134.5
L (mm): 108
PVC pipe nominal diameter: 13

【Specification2】
Applicable fluid: tap water, fresh water
Fluid temperature: 0 to 45℃
Maximum working pressure: 1.0MPa
With Japan Water Association inspection stamp
Transparent PVC type

【Material/Finish】
Valve body: Bronze (CAC406)
Connection part: PVC (HIPVC)

【Set contents/accessories】
－

【caution】
－
