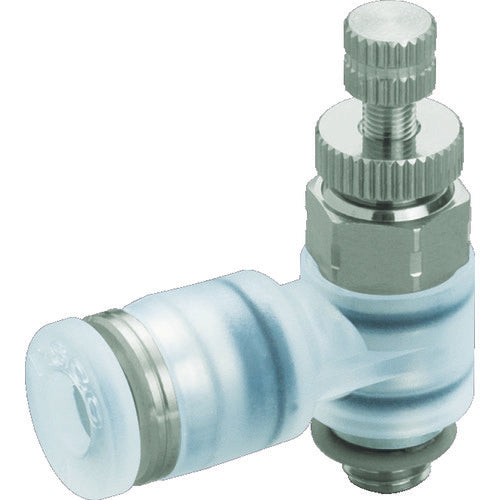

Throttle Valve PP Elbow PJNC4-M5 PISCO

PP suitable for clean environments is used as the material for the main body.The resin body is clear(semitransparent)which enables confirmation of the fluid(liquid).Compatible Tube Outer Diameter D (mm):4Connection Port Diameter:M5 x 0.8Working fluid: Air, water(with conditions), othersWorking temperature range: 0 to 80C(without freezing)Working pressure: 1.0MPa(at 0 to 20)Working vacuum pressure: -100kPaMetal parts: Stainless steel(SUS304)Resin parts: Polypropylene(PP)Seal rubber: Ethylene propylene rubber(EPDM)
