V-Coil Notch Tangless Insert Typ SN 09015 VOELKEL

【Features】
Since it is tangless, there is no need to break it off, reducing work time.
There is no need to worry about pitch skipping that occurs during folding work.
You can avoid problems such as short circuits caused by forgetting to remove the tongue.

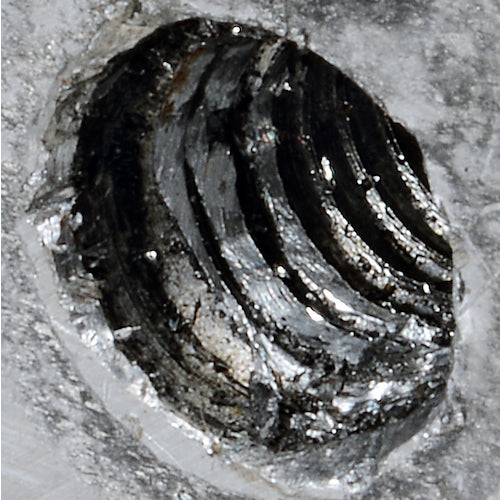

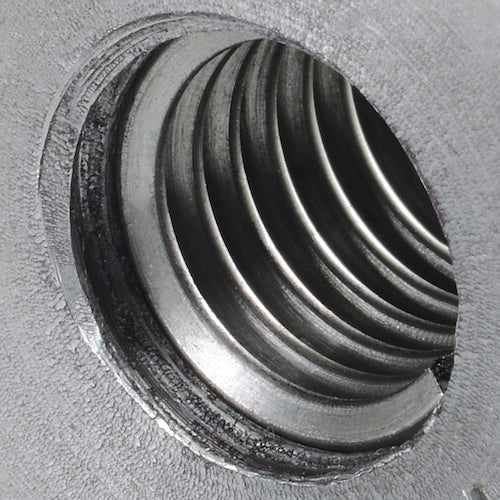

Ideal for repairing crushed screws and strengthening threads of lightweight materials.

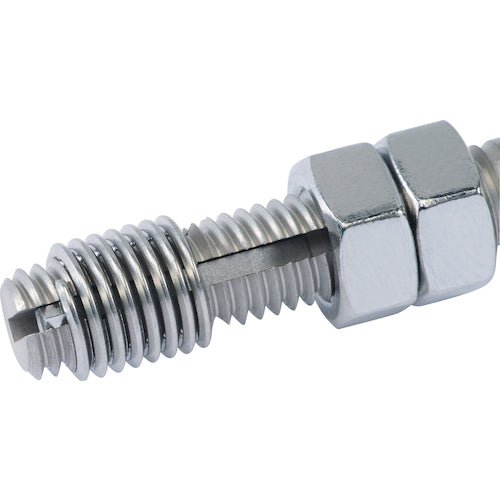

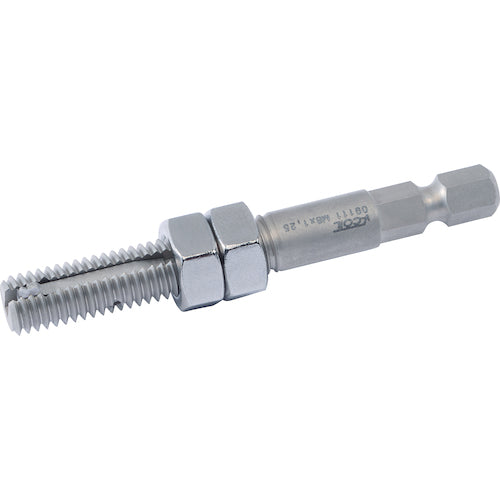

The insertion tool comes with a lock nut that allows you to adjust the depth.
There is no need to check the direction when inserting the insert screw.
All set tools are hexagonal shaft (6.35mm) types.
All work can be done with a ratchet handle (6.35mm concave) and electric screwdriver.
Comes with an adapter so you can work efficiently.

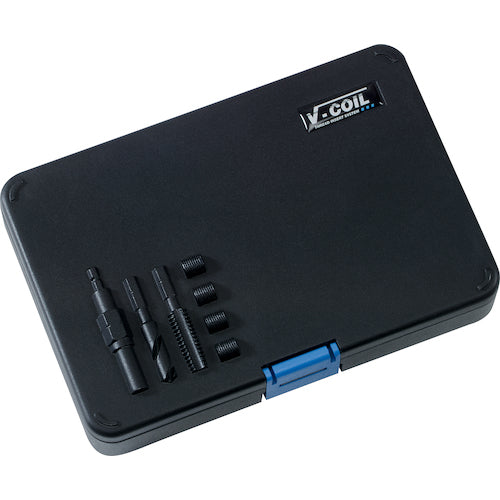

A kit that allows you to insert tangless insert screws.

【Use】
－

【Specification】
Pilot hole diameter (mm): 10.4
Thread designation: M10
Thread pitch: 1.5

【Specification2】
Nominal length (D): 1.5

【Material/Finish】

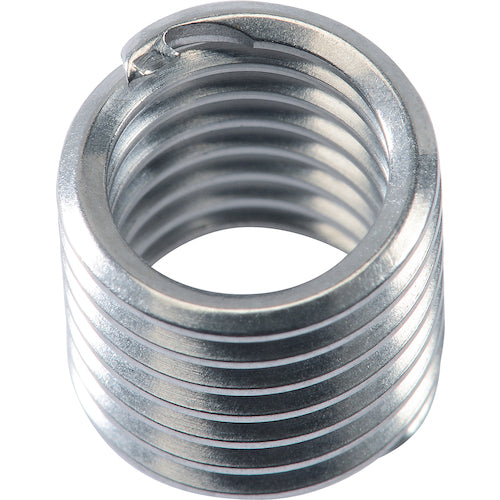

Insert screw: Stainless steel Drill, tap: High speed steel (HSS) Adapter, insertion tool: Tool steel

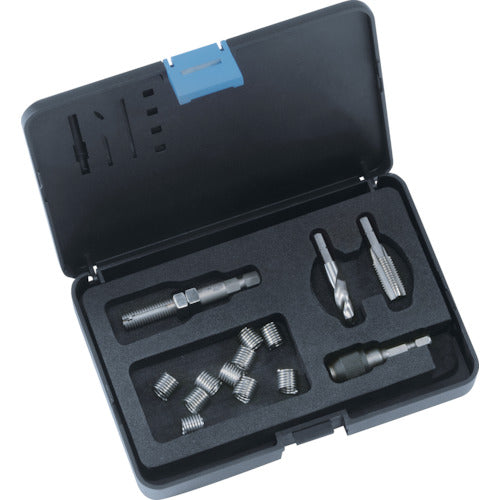

【Set contents/accessories】

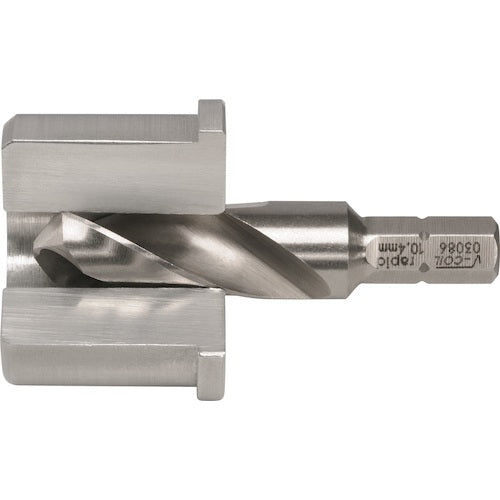

Adapter (6.35mm), hexagonal shaft drill for pilot holes, hexagonal shaft tap, hexagonal shaft insert screw insertion tool, insert screw (10 pieces)

【caution】
Wear safety goggles and work gloves, and be careful of your surroundings when working.
