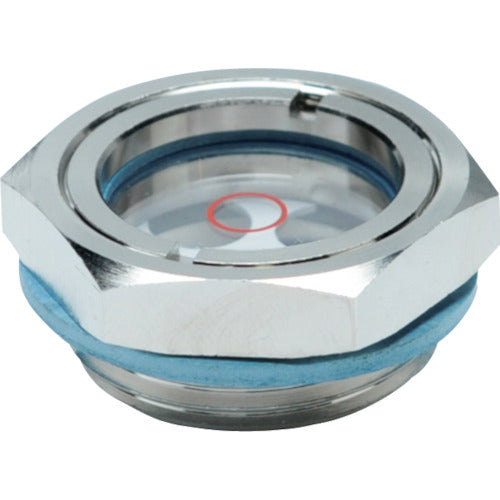

Oil Gauge M type 10102000 IEHARA LITE INDUSTRY

【Features】
Since it is made of metal, there is no need to worry about damage.
The transparent plate on the liquid surface is made of polycarbonate resin and is heat resistant up to 130℃.

【Use】
－

【Specification】
Thickness (mm): 17.5
Mounting screw diameter: G1/2
Pressure resistance (MPa): 1.5 (40℃)
Heatproof temperature (℃): 130
Width across flats dimension (mm): 26
Width (mm) :30

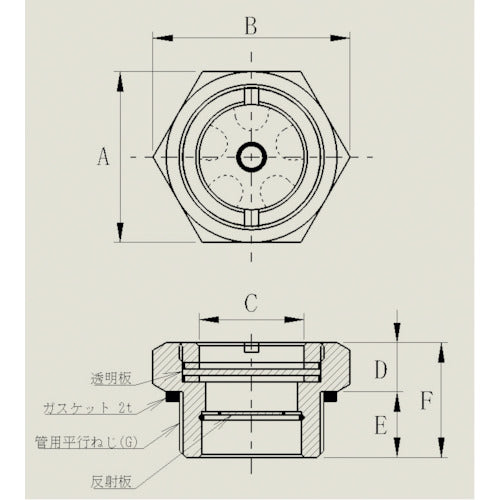

A(mm):26
B(mm):30
C(mm):16
D(mm):7.5
E(mm):10
F(mm):17.5

【Specification2】
Mounting thread diameter: Parallel pipe thread G1/2

【Material/Finish】
Body: Brass, nickel plating
Transparent plate: Plastic

【Set contents/accessories】
－

【caution】
－
