Plastic Screw 10179334 DAIDOHANT

【Features】

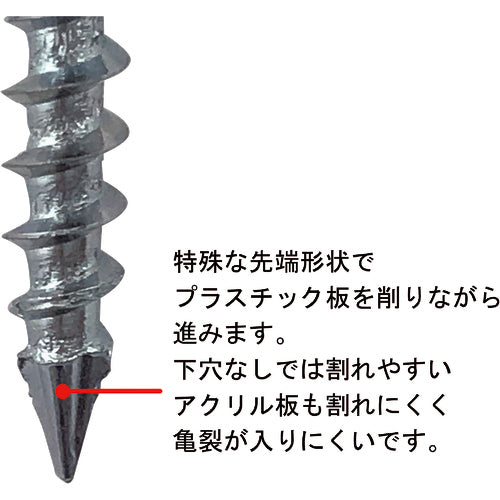

By carving the board with a special tip shape, the acrylic board, which is easily broken without a pilot hole, is difficult to break and cracks are difficult to form.
It is easy to remove the shavings that are emitted when cutting the board, so the finish is beautiful.
Compatible with plastic products up to 5mm in thickness, so a variety of plastic products can be attached.
(Some products made overseas may require pilot holes)

【Use】
For attaching plastic or acrylic boards to wood.

【Specification】
Dimensions (mm) d: 3.8
Total length (mm): 19
Thread length (mm): 16
Type: Full thread
Head diameter dk (mm): 8

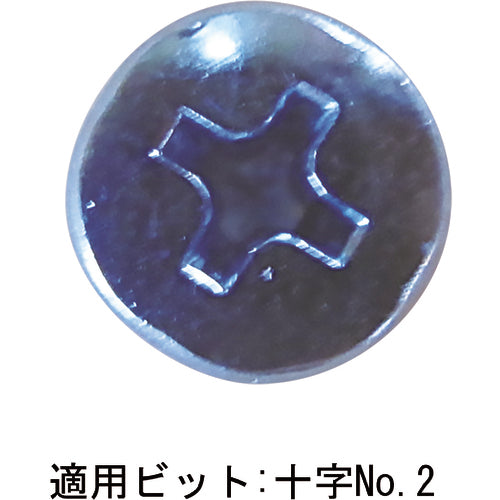

Compatible screwdriver: Phillips No. 2
Head Color: Silver
Surface treatment: Trivalent Unichrome
Blade tip: Special tip
Head diameter (mm): 8
Head color: Unichrome

【Specification2】
－

【Material/Finish】
Steel
Surface treatment: Trivalent unichrome plating

【Set contents/accessories】
－

【caution】
After installation, the resin may crack due to temperature changes, so if you are concerned about this, we recommend drilling a slightly larger pilot hole.
Also, please install the fastening point at least 10mm away from the end.
When using an electric screwdriver, gradually increase the rotation and tighten at a constant speed.
