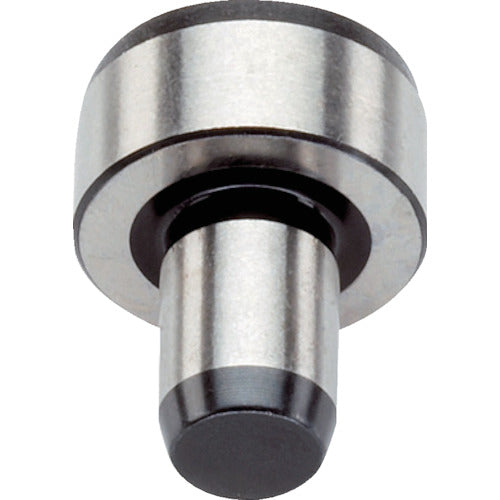

Positioning pin 22630.0012 HALDER
Positioning pin 22630.0012 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0012 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0012 HALDER

Positioning pin 22630.0012 HALDER

【order ID】1066624
【basic item number】22630.0012 6343
【brand name】HALDER
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】
【Country of origin】0
【Weight】5.7G
【Features】
Used as a reference pin for positioning the workpiece.
It is DIN6321 type A.

【Use】
The cylindrical pin has a height tolerance of h10, and is used for positioning together with the tolerance hole.
Also suitable for stoppers and feet.
The chamfered diamond pin absorbs tolerances in hole spacing and determines the fixing direction of the workpiece.

【Specification】
Outer diameter d1 (mm): 10
Pedestal height l1 (mm): 6
Pin diameter d2 (mm): 6
Pin length l2 (mm): 9

【Specification2】
DIN 6321/Positioning pedestal pin A type

【Material/Finish】
Tool steel, hardening, polishing

【Set contents/accessories】
－

【caution】
－
¥1,401
¥1,401
Sold out
